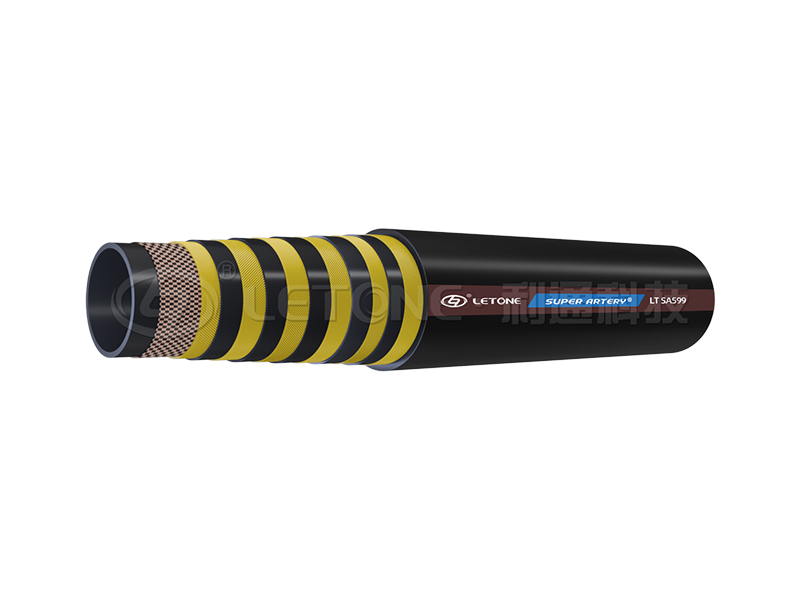

LTSA599
ISO18752-DC Super Artery Steel Wire Spiral Hose
Hose Construction & Applications
- Inner Tube: CR/NBR synthetic rubber
- Reinforcement: Multi-spiraled high tensile super flexible steel wire, Four plies ≥ 1 million impulse cycles
- Outer Layer: Skiving-free abrasion and weather resistant synthetic rubber
- Temperature Range: -40°C to +120°C (-40°F +248°F) -55°C +100°C (-67°F to +212°F)
- Application: Remarkable performance on tight bend radius, high pressure,long service life, and high impulse,weather resistant for more than five years and warrantied for two years with Letone hose fittings and HNBR seals.Widely apply to excavator and other heavy duty construction machinery or hash working environment.
Description
Technical Specifications
|
SIZE |
I.D |
O.D |
O.D |
MAX.W.P |
P.P |
MIN.B.R |
||||
|
DASH |
IN |
Min |
Max |
Min |
Max |
Min |
Max |
|||
|
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
mm |
||
|
10-4 |
3/8" |
9.5 |
10.5 |
17.8 |
19.0 |
20.5 |
22.5 |
56 |
224 |
100 |
|
13-4 |
1/2" |
12.5 |
13.5 |
19.8 |
21.0 |
21.8 |
23.8 |
42 |
168 |
140 |
|
16-4 |
5/8" |
15.9 |
16.6 |
23.9 |
25.1 |
26.0 |
28.0 |
42 |
168 |
180 |
|
19-4 |
3/4" |
18.8 |
19.6 |
27.9 |
29.1 |
30.0 |
32.0 |
42 |
168 |
200 |
|
25-4 |
1" |
25.0 |
25.8 |
34.4 |
36.4 |
36.8 |
39.2 |
42 |
168 |
250 |
|
32-4 |
1 1/4" |
31.6 |
32.6 |
40.9 |
42.9 |
43.3 |
45.7 |
35 |
140 |
400 |
|
38-4 |
1 1/2" |
37.8 |
38.8 |
48.1 |
50.1 |
51.3 |
53.7 |
32 |
128 |
480 |
|
51-4 |
2" |
50.7 |
52 |
62.6 |
63.8 |
65.6 |
67.4 |
25 |
100 |
650 |
|
32-6 |
1 1/4" |
31.6 |
32.6 |
46.4 |
48.4 |
49.0 |
51.4 |
42 |
168 |
400 |
|
38-6 |
1 1/2" |
37.7 |
38.8 |
52.0 |
54.0 |
54.8 |
57.0 |
42 |
168 |
480 |
|
51-6 |
2" |
50.7 |
52 |
66.4 |
67.6 |
69.1 |
70.9 |
42 |
168 |
630 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
