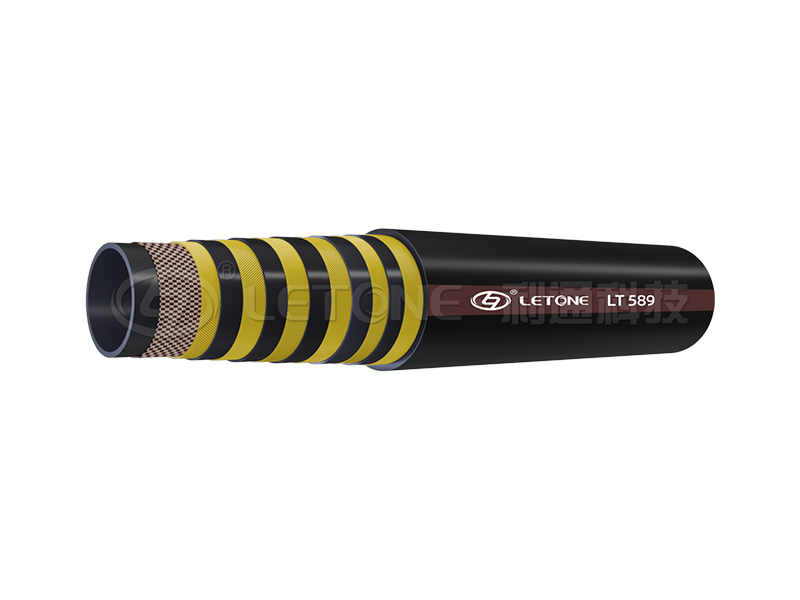

LT589
SAE 100R15 Wire Spiral Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black hot oil resistant synthetic rubber
- Reinforcement: Four or six plies of spiraled high tensile steel wire
- Outer Layer: Black oil, weather, and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +120°C (-40°F ~ +248°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil.Remarkable performance on high pressure,high impulse,and low bend applications.
Description
Technical Specifications
|
SIZE |
SIZE |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
Min |
Max |
Min |
Max |
Min |
Max |
|||||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-6 |
3/8 |
9.5 |
10.5 |
18.6 |
19.8 |
21.0 |
23.0 |
42 |
84 |
168 |
150 |
0.93 |
|
-8 |
1/2 |
12.5 |
13.5 |
21.6 |
22.8 |
24.2 |
26.2 |
42 |
84 |
168 |
200 |
1.10 |
|
-12 |
3/4 |
18.6 |
19.8 |
27.8 |
29.0 |
30.0 |
32.0 |
42 |
84 |
168 |
265 |
1.54 |
|
-16 |
1 |
25.0 |
26.4 |
34.6 |
36.6 |
37.2 |
39.6 |
42 |
84 |
168 |
330 |
2.17 |
|
-20 |
11/4 |
31.4 |
33.0 |
46.4 |
48.4 |
48.7 |
51.7 |
42 |
84 |
168 |
445 |
4.08 |
|
-24 |
11/2 |
37.7 |
39.3 |
52.0 |
54.0 |
54.5 |
57.5 |
42 |
84 |
168 |
530 |
4.67 |
|
-32 |
2 |
50.4 |
52.0 |
66.0 |
68.0 |
68.5 |
71.5 |
42 |
84 |
168 |
680 |
6.71 |
