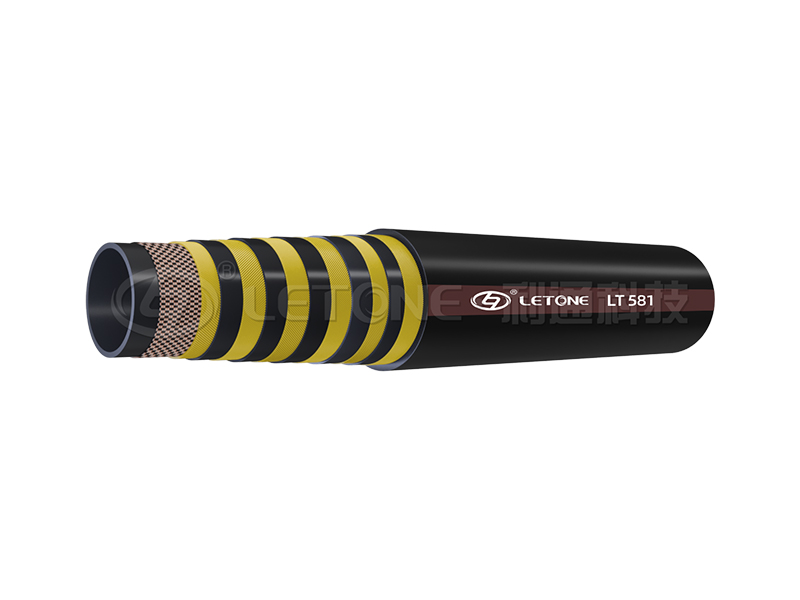

LT581
SAE 100R12|MSHA Wire Spiral Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black hot oil resistant synthetic rubber
- Reinforcement: Four plies of spiraled high tensile steel wire
- Outer Layer: Black oil and weather resistant synthetic rubber
- Temperature Range: -40°C ~ +120°C (-40°F ~ +248°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil under harsh working conditions.
Description
Technical Specifications
|
SIZE |
SIZE |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
Min |
Max |
Min |
Max |
Min |
Max |
|||||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-6 |
3/8 |
9.5 |
10.5 |
16.9 |
18.1 |
19.0 |
21.0 |
28 |
56 |
112 |
125 |
0.71 |
|
-8 |
1/2 |
12.5 |
13.5 |
20.1 |
21.3 |
22.1 |
24.1 |
28 |
56 |
112 |
180 |
0.85 |
|
-10 |
5/8 |
15.5 |
16.7 |
24.0 |
25.2 |
26.5 |
28.5 |
28 |
56 |
112 |
200 |
1.06 |
|
-12 |
3/4 |
18.6 |
19.8 |
26.9 |
28.4 |
29.1 |
31.1 |
28 |
56 |
112 |
240 |
1.33 |
|
-16 |
1 |
25.0 |
26.4 |
34.2 |
35.8 |
36.3 |
38.7 |
28 |
56 |
112 |
300 |
1.83 |
|
-20 |
11/4 |
31.4 |
33.0 |
42.9 |
44.9 |
45.3 |
47.7 |
21 |
42 |
84 |
420 |
2.67 |
|
-24 |
11/2 |
37.7 |
39.3 |
49.4 |
51.4 |
52.3 |
54.7 |
17.5 |
35 |
70 |
500 |
3.12 |
|
-32 |
2 |
50.8 |
52.0 |
62.5 |
64.8 |
65.1 |
68.3 |
17.5 |
35 |
70 |
640 |
4.48 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
