LT599

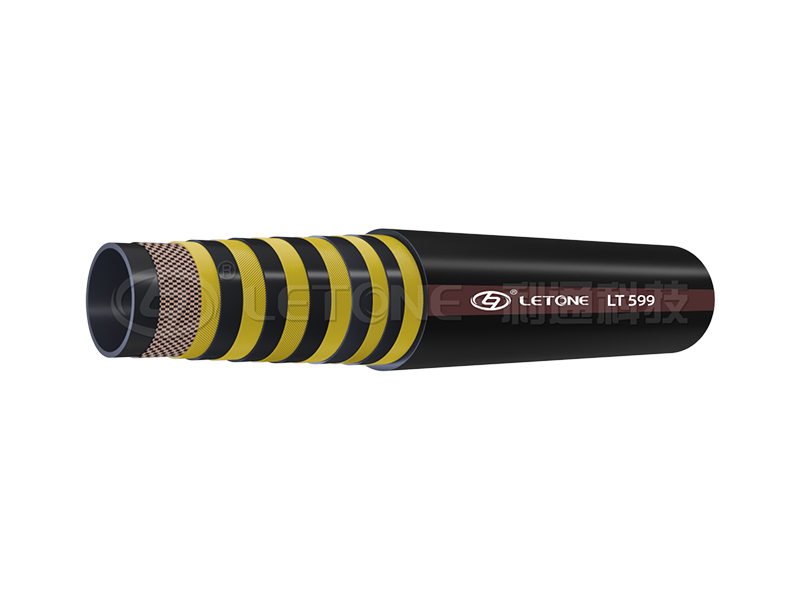

ISO18752-CC Artery Wire Spiral Hydraulic Hose
Hose Construction & Applications
- Inner Tube: NBR synthetic rubber
- Reinforcement: Four or six plies of spiraled high tensile steel wire,tested with 800,000 impulse cycles without leakage
- Outer Layer: Skiving-free abrasion and weather resistant synthetic rubber
- Temperature Range: -40°C to +120°C (-40°F to +248°F) -55°C to +100°C (-67°F to +212°F)
- Application: Remarkable performance on high pressure and high impulse. Widely apply to excavator and other heavy duty construction machinery.
Description
Technical Specifications
|
SIZE |
ImperialStandard |
Metric Specifications |
I.D |
W.D |
O.D |
MAX.W.P |
P.P |
MIN.B.P |
MIN.Impulse |
MIN.B.R |
W.T |
|||
|
SIZE |
SIZE |
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
10k |
||||||
|
DASH |
IN |
MM |
MM |
MM |
MM |
MM |
MM |
MPA |
MPA |
MPA |
CYCLES |
MM |
Kg/m |
|
|
-4 |
1/4-4S |
6.2 |
6.0 |
6.8 |
15.0 |
16.2 |
18.0 |
20.0 |
69 |
138 |
276 |
50 |
120 |
0.60 |
|
-6 |
3/8-4S |
10 |
9.5 |
10.5 |
17.8 |
19.0 |
20.5 |
22.5 |
56 |
112 |
224 |
50 |
150 |
0.71 |
|
-8 |
1/2-4S |
12.5 |
12.8 |
13.5 |
19.8 |
21.0 |
21.8 |
23.8 |
42 |
84 |
168 |
80 |
190 |
0.82 |
|
-10 |
5/8-4S |
16 |
15.9 |
16.6 |
23.9 |
25.1 |
26.0 |
28.0 |
42 |
84 |
168 |
80 |
200 |
1.15 |
|
-12 |
3/4-4S |
19 |
18.8 |
19.6 |
27.9 |
29.1 |
30.0 |
32.0 |
42 |
84 |
168 |
80 |
224 |
1.56 |
|
-16 |
1-4S |
25 |
25.0 |
25.8 |
34.4 |
36.4 |
36.8 |
39.2 |
42 |
84 |
168 |
80 |
272 |
2.13 |
|
-20 |
1 1/4-4S |
31.5 |
31.6 |
32.6 |
40.9 |
42.9 |
43.3 |
45.7 |
35 |
70 |
140 |
80 |
370 |
2.56 |
|
-24 |
1 1/2-4S |
38 |
37.8 |
38.8 |
48.1 |
50.1 |
51.3 |
53.7 |
32 |
64 |
128 |
80 |
540 |
3.18 |
|
-32 |
2-4S |
51 |
50.7 |
52 |
62.6 |
63.8 |
65.6 |
67.4 |
25 |
50 |
100 |
80 |
660 |
4.46 |
|
-20 |
1 1/4-6S |
31.5 |
31.6 |
32.6 |
46.0 |
48.0 |
48.8 |
51.2 |
42 |
84 |
168 |
80 |
420 |
4.07 |
|
-24 |
1 1/2-6S |
38 |
37.7 |
38.8 |
52.0 |
54.0 |
54.8 |
57.2 |
42 |
84 |
168 |
80 |
500 |
4.63 |
|
-32 |
2-6S |
51.5 |
51.6 |
51.8 |
66.4 |
67.6 |
69.1 |
70.9 |
42 |
84 |
168 |
80 |
650 |
6.32 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
