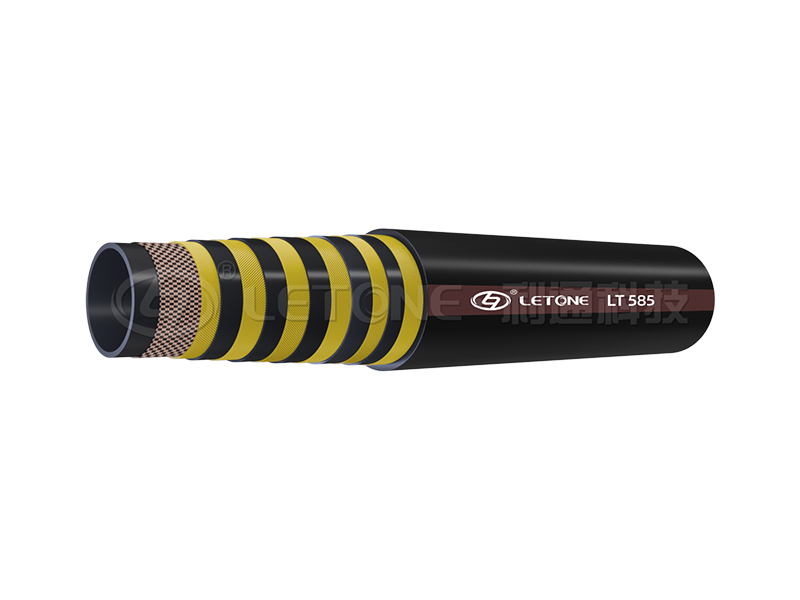

LT585
MT/T98|MSHA Wire Spiral Hydraulic Hose For Mining
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: Four or six plies of spiraled high tensile steel wire
- Outer Layer: Black oil,weather, and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable for conveying medium like mineral oil,water-based hydraulic oil,or water in coal mining machinery such as coal mining hydraulic supportand coal shearer.
Description
Technical Specifications
|
Specification |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
3/8-4 |
9.5 |
10.5 |
18.2 |
19.8 |
22.4 |
24.4 |
70 |
105 |
210 |
180 |
0.90 |
|
1/2-4 |
12.5 |
13.5 |
21.4 |
23.0 |
25.2 |
27.2 |
57 |
86 |
172 |
210 |
1.05 |
|
5/8-4 |
15.7 |
16.6 |
25.2 |
26.8 |
29.0 |
31.0 |
53 |
80 |
160 |
260 |
1.40 |
|
3/4-4 |
18.7 |
19.8 |
29.2 |
30.4 |
33.0 |
35.0 |
46 |
69 |
140 |
280 |
1.75 |
|
7/8-4 |
21.7 |
22.8 |
31.7 |
32.9 |
36.0 |
38.0 |
41 |
62 |
124 |
320 |
1.93 |
|
1-4 |
24.7 |
25.8 |
35.2 |
36.4 |
38.8 |
41.2 |
35 |
53 |
112 |
360 |
2.14 |
|
11/4-4 |
31.6 |
32.6 |
43.2 |
44.6 |
46.8 |
49.2 |
32 |
48 |
84 |
460 |
2.82 |
|
11/2-4 |
37.7 |
38.8 |
49.8 |
51.8 |
54.3 |
56.7 |
25 |
38 |
75 |
560 |
3.41 |
|
13/4-4 |
44.7 |
45.8 |
56.8 |
58.8 |
61.5 |
64.5 |
21 |
32 |
64 |
640 |
4.03 |
|
2-4 |
50.5 |
52.0 |
62.8 |
64.8 |
65.0 |
67.4 |
21 |
32 |
64 |
720 |
4.43 |
|
3/8-6 |
9.5 |
10.5 |
20.0 |
22.0 |
24.0 |
26.0 |
80 |
120 |
240 |
180 |
1.20 |
|
1/2-6 |
12.5 |
13.5 |
23.4 |
24.6 |
26.5 |
28.5 |
72 |
108 |
216 |
210 |
1.40 |
|
5/8-6 |
15.7 |
16.6 |
28.0 |
30.0 |
31.5 |
34.5 |
70 |
105 |
204 |
260 |
2.10 |
|
3/4-6 |
18.7 |
19.8 |
32.0 |
34.0 |
35.5 |
37.5 |
60 |
90 |
180 |
280 |
2.47 |
|
7/8-6 |
21.7 |
22.8 |
35.0 |
37.0 |
39.5 |
42.5 |
53 |
80 |
160 |
320 |
2.80 |
|
1-6 |
24.7 |
25.8 |
38.0 |
39.6 |
41.8 |
44.2 |
50 |
75 |
152 |
360 |
3.05 |
|
11/4-6 |
31.6 |
32.6 |
46.0 |
48.0 |
49.5 |
52.5 |
41 |
62 |
124 |
460 |
3.95 |
|
11/2-6 |
37.7 |
38.8 |
53.0 |
55.0 |
56.5 |
59.5 |
36 |
54 |
108 |
560 |
4.93 |
|
13/4-6 |
44.7 |
45.8 |
59.8 |
61.8 |
64.5 |
67.5 |
32 |
48 |
96 |
640 |
5.02 |
|
2-6 |
50.5 |
52.0 |
66.2 |
68.2 |
70.5 |
73.5 |
32 |
48 |
96 |
720 |
6.73 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
