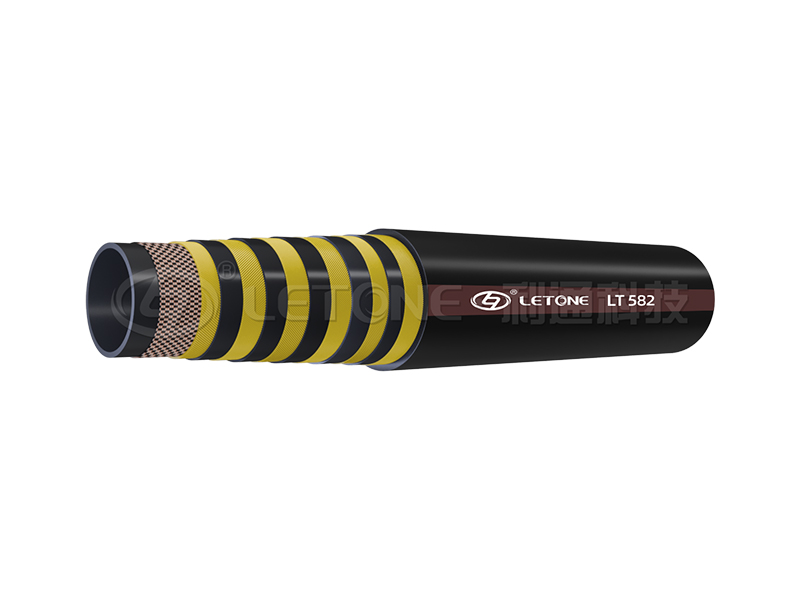

LT582
SAE 100R13|MSHA Wire Spiral Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black hot oil resistant synthetic rubber
- Reinforcement: Four or six plies of spiraled high tensile steel wire
- Outer Layer: Black oil and weather resistant synthetic rubber
- Temperature Range: -40°C ~ +120°C (-40°F ~ +248°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil under harsh working conditions.
Description
Technical Specifications
|
SIZE |
SIZE |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
Min |
Max |
Min |
Max |
Min |
Max |
|||||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-12 |
3/4 |
18.6 |
19.8 |
28.2 |
29.4 |
31.2 |
33.2 |
35 |
70 |
140 |
240 |
1.61 |
|
-16 |
1 |
25.0 |
26.4 |
34.8 |
36.4 |
37.3 |
39.7 |
35 |
70 |
140 |
300 |
2.06 |
|
-20 |
11/4 |
31.4 |
31.4 |
46.0 |
48.0 |
48.8 |
51.2 |
35 |
70 |
140 |
420 |
3.84 |
|
-24 |
11/2 |
37.7 |
37.7 |
53.0 |
55.0 |
55.8 |
58.2 |
35 |
70 |
140 |
500 |
4.60 |
|
-32 |
2 |
50.4 |
50.4 |
67.1 |
69.1 |
69.5 |
72.5 |
35 |
70 |
140 |
640 |
6.61 |
