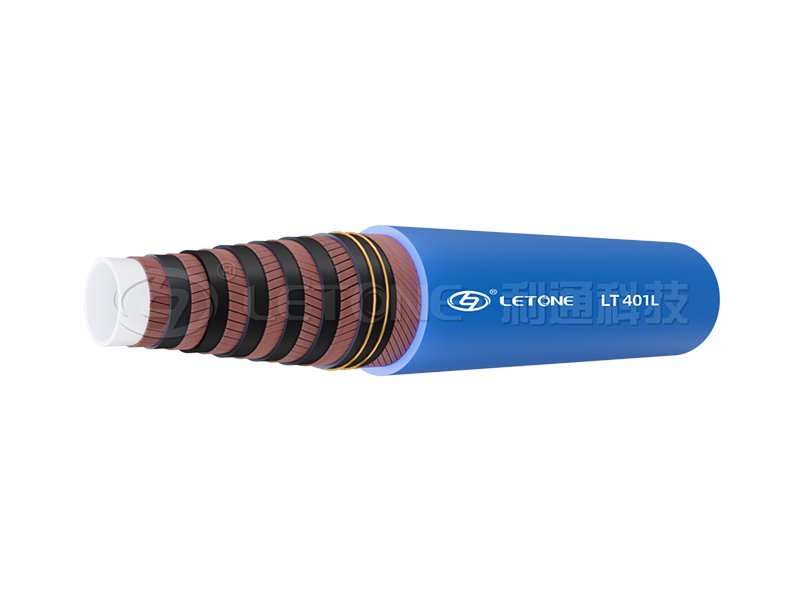

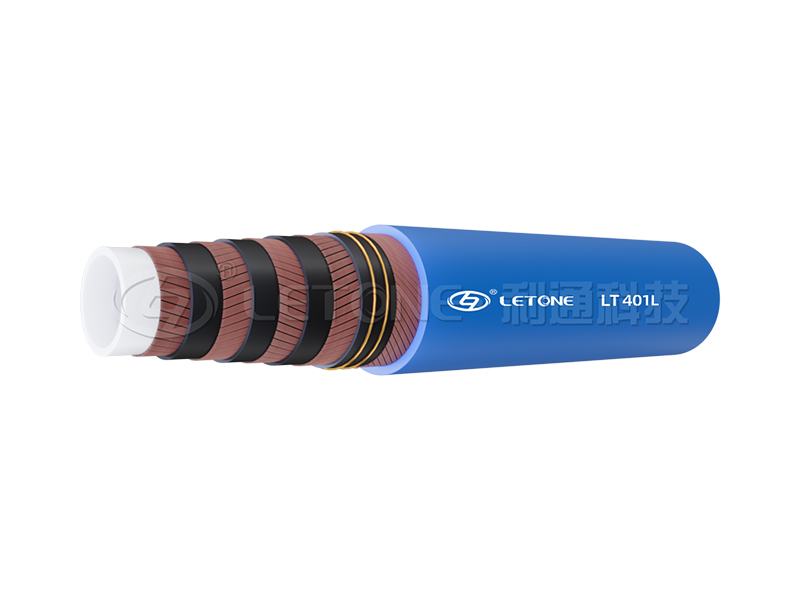

LT401L
EN12115 PTFE Low Pressure Multipurpose Hose
Hose Construction & Applications
- Application: Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc.The productis suitable to work under high temperature environment. Depending on its feature of super corrosion-resistant,even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is alsoone of the best choices for food and medical industries.
- Inner Tube: PTFE and EPDM synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black or blue EPDM or FKM synthetic rubber (UPE layer is available)
- Temperature Range: -55°C to 220°C (-67°F to 428°F)
Description
Technical Specifications
*The hose dimension, pressure and color can be customized based on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
kg/m |
|
3/8 |
10 |
0.7 |
19 |
5075 |
20300 |
0.58 |
|
1/2 |
13 |
0.9 |
22.2 |
4060 |
16240 |
0.61 |
|
5/8 |
16 |
1.07 |
27.2 |
3625 |
14500 |
0.73 |
|
3/4 |
19 |
1.2 |
30.5 |
3190 |
12760 |
0.95 |
|
1 |
25 |
1.5 |
38.4 |
2465 |
9860 |
1.42 |
|
1-1/4 |
32 |
1.8 |
45.5 |
1885 |
7540 |
1.72 |
|
1-1/2 |
38 |
2.0 |
51.5 |
1305 |
5220 |
1.9 |
|
2 |
51 |
2.80 |
71 |
300 |
750 |
2.05 |
|
3 |
76 |
3.86 |
98 |
300 |
750 |
3.50 |
|
4 |
102 |
5.00 |
127 |
300 |
750 |
5.50 |
