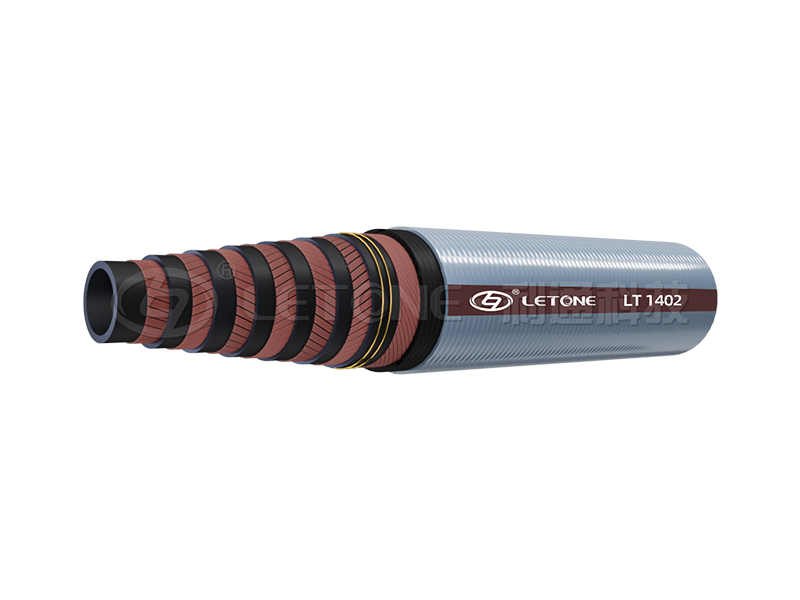

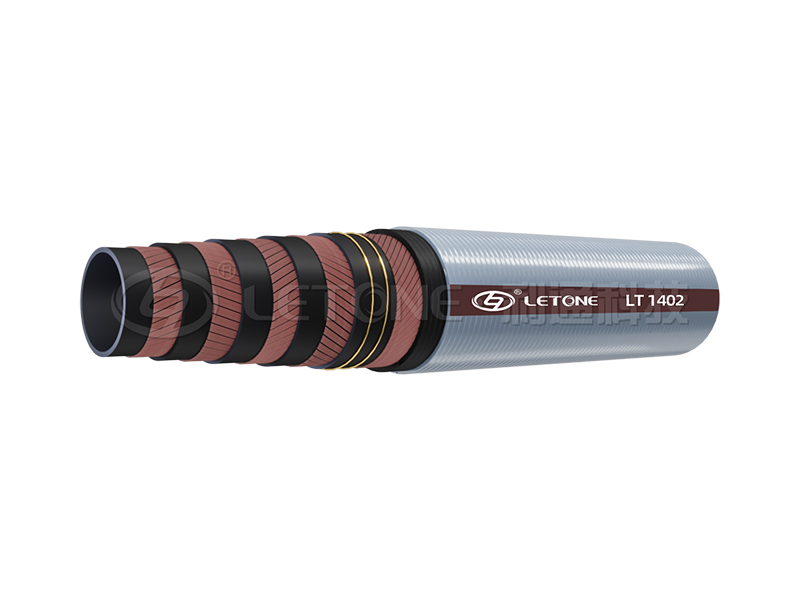

LT1402
Furnace Cooling Water Delivery Hose
Hose Construction & Applications
- Application: Big diameter flexible hose specially designed for cooling water conveyin steel mills, glass plans and foundries with high cooling efficiency and long service life, suitable for high-temp and hot metal or glass splashing environment.
- Inner Tube: Black EPDM synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and insulated spiral PP wire or helix spiral-wire
- Outer Layer: Black NBR&PVC fire retardant mixed rubber/thermal protective-layer and stainless steel armour
- Temperature Range: -40°C~+100°C(-40°F~+212°F);The cover radiant heat:540°C (1004°F)
Description
Technical Specifications
*The hose dimension, pressure and color can be customizedbased on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
3.03 |
77 |
300 |
750 |
420 |
1.85 |
|
3 |
76 |
4.06 |
103 |
300 |
750 |
590 |
2.90 |
|
4 |
102 |
5.20 |
132 |
300 |
750 |
770 |
5.30 |
|
5 |
127 |
5.87 |
149 |
300 |
750 |
950 |
6.45 |
|
6 |
152 |
6.81 |
173 |
300 |
750 |
1160 |
7.00 |
|
8 |
203 |
9.17 |
233 |
300 |
750 |
1400 |
15.00 |
|
10 |
254 |
11.30 |
287 |
300 |
750 |
1700 |
20.00 |
