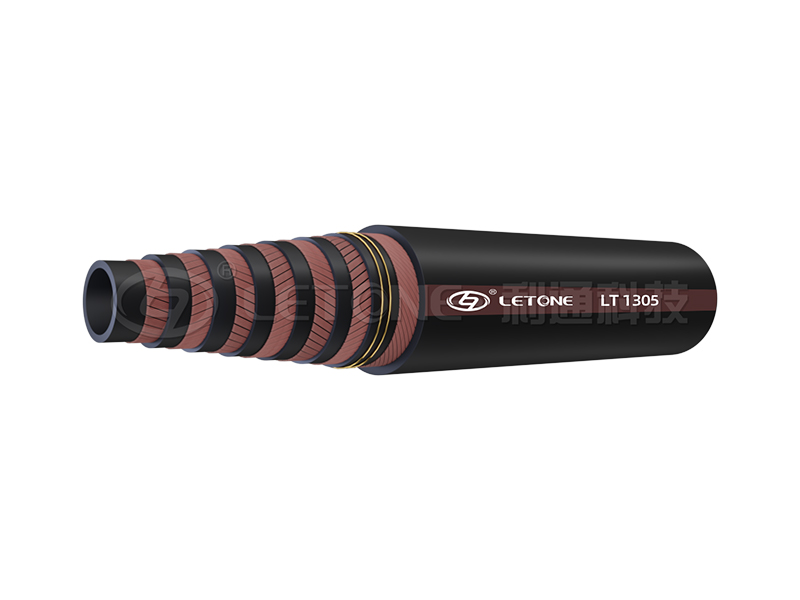

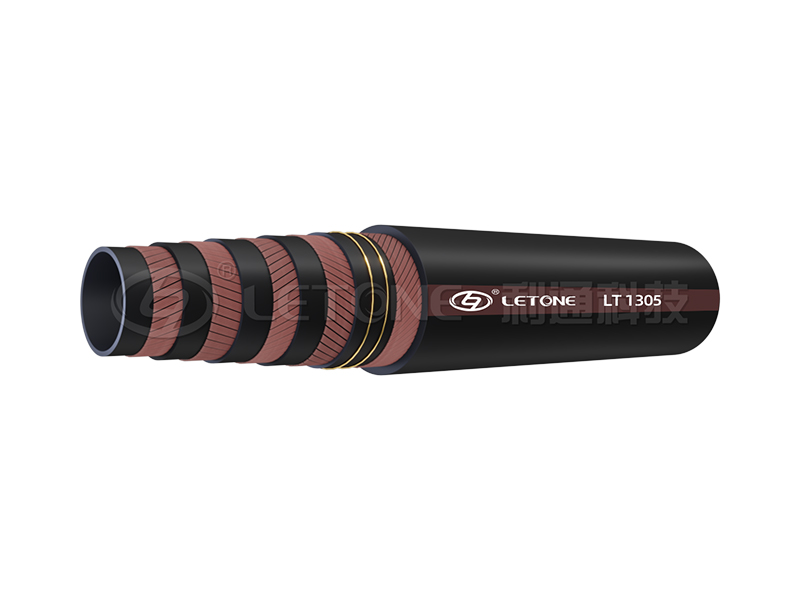

LT1305
HG/T 2192 Bulk Materials Suction & Discharge Hose
Hose Construction & Applications
- Application: Widely apply to large-scale projects like mining & construction, tunnel project and construction machinery like shield machine and slotter etc. Depending on its features of super abrasion and corrosion resistant,this product also suitable to transfer pulverized coal, cement, and various corrosive chemicals.
- Inner Tube: Black,abrasionresistant, antistatic NR&SBRsynthetic rubber or UPE
- Reinforcement: Multi-spiral high tensile synthetic fibersand helix spiral-wire
- Outer Layer: NR&SBR or EPDM synthetic rubber
- Temperature Range: -30°C~+82°C (-22°F~+180°F)
Description
Technical Specifications
*The hose dimension, pressure and color can be customizedbased on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.48 |
63 |
300 |
750 |
400 |
1.55 |
|
3 |
76 |
3.62 |
92 |
300 |
750 |
570 |
2.60 |
|
4 |
102 |
4.76 |
120 |
300 |
750 |
750 |
4.50 |
|
5 |
127 |
5.98 |
152 |
300 |
750 |
1000 |
6.50 |
|
6 |
152 |
7.76 |
197 |
300 |
750 |
1260 |
19.5 |
