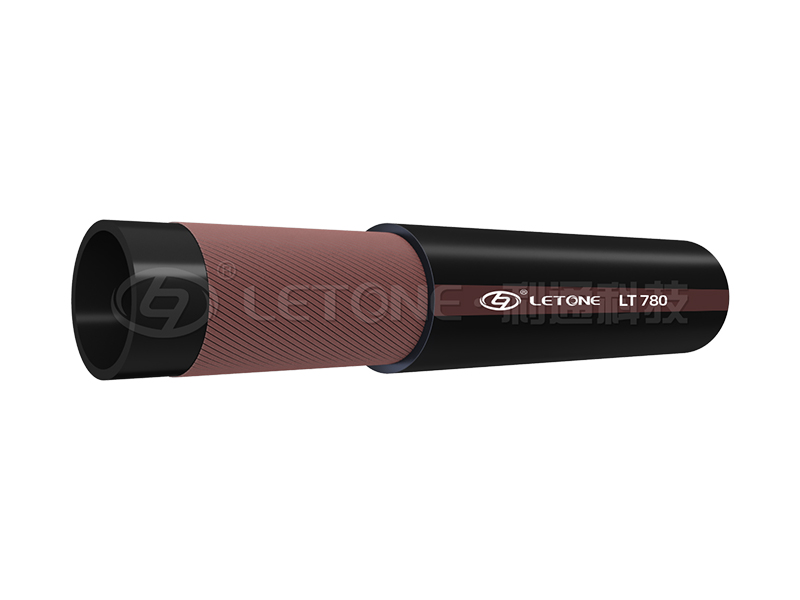

LT780
Oil Return Rubber Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One braid or one spiral of textile
- Outer Layer: Black oil weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable to convey petroleum-based hydraulic oil, lubricating oil,water,and air
Description
Technical Specifications
|
SIZE |
I.D |
O.D |
Max.W.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
DASH |
IN |
Min |
Max |
Min |
Max |
MPa |
MPa |
mm |
Kg/m |
|
-4 |
1/4" |
6.3 |
6.9 |
12.4 |
13.6 |
2 |
8 |
65 |
0.138 |
|
-5 |
5/16" |
7.8 |
8.5 |
14.8 |
16.0 |
2 |
8 |
80 |
0.18 |
|
-6 |
3/8" |
9.5 |
10.8 |
16.4 |
17.6 |
2 |
8 |
80 |
0.189 |
|
-8 |
1/2" |
12.5 |
13.8 |
21.7 |
23.3 |
2 |
8 |
100 |
0.339 |
|
-10 |
5/8" |
15.8 |
16.6 |
25.7 |
27.3 |
2 |
8 |
125 |
0.443 |
|
-12 |
3/4" |
18.8 |
19.8 |
28.9 |
30.5 |
2 |
8 |
150 |
0.528 |
|
-14 |
7/8" |
21.8 |
22.8 |
31.2 |
32.8 |
2 |
8 |
170 |
0.535 |
|
-16 |
1" |
25.2 |
26.2 |
34.4 |
36.0 |
2 |
8 |
200 |
0.59 |
|
-20 |
1-1/4" |
31.8 |
32.8 |
43.8 |
46.2 |
2 |
8 |
250 |
0.954 |
|
-24 |
1-1/2" |
37.8 |
38.8 |
50.8 |
53.2 |
2 |
8 |
300 |
1.189 |
|
-32 |
2" |
50.8 |
52.2 |
64.3 |
66.7 |
2 |
8 |
360 |
1.612 |
|
-40 |
2-1/2" |
63.8 |
65.5 |
78.8 |
81.2 |
2 |
6 |
430 |
2.272 |
|
-48 |
3" |
75.8 |
77.5 |
90.8 |
93.2 |
2 |
6 |
500 |
2.693 |
