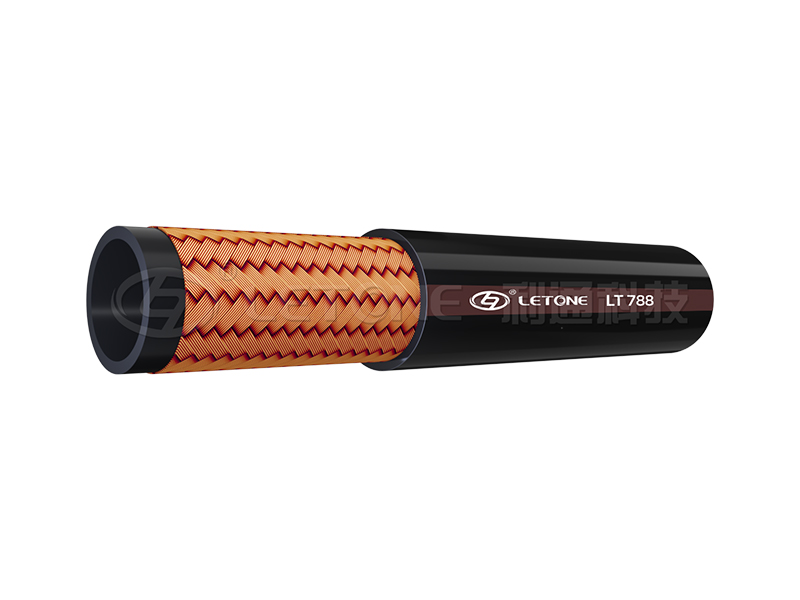

LT788
Sand Blastlng Hose
Hose Construction & Applications
- Inner Tube: Black abrasion resistant synthetic rubber (UPE layer is available)
- Reinforcement: Braided fiber or steel wire
- Outer Layer: Black weather and abrasion resistant synthetic rubber
- Temperature Range: -40℃~+70℃(-40°F~+158°F)
- Application: Apply to industries like railway,shipbuilding,and construction to remove rust on the metal surface
Description
Technical Specifications
|
SIZE |
I.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
DASH |
IN |
Min |
Max |
Min |
Max |
Min |
MPa |
MPa |
mm |
kg/m |
|
-10 |
5/8 |
15.5 |
16.7 |
28.2 |
29.8 |
1.0 |
2.0 |
4.0 |
105 |
0.98 |
|
-12 |
3/4 |
18.8 |
19.8 |
34.2 |
35.8 |
1.0 |
2.0 |
4.0 |
130 |
1.14 |
|
-16 |
1 |
24.8 |
25.8 |
42.8 |
45.2 |
1.0 |
2.0 |
4.0 |
150 |
1.50 |
|
-20 |
1 1/4 |
31.6 |
32.6 |
48.8 |
51.5 |
1.0 |
2.0 |
4.0 |
190 |
1.80 |
|
-24 |
1 1/2 |
37.7 |
38.8 |
57.5 |
60.5 |
1.0 |
2.0 |
4.0 |
240 |
2.10 |
|
-28 |
1 3/4 |
44.6 |
45.6 |
62.5 |
65.5 |
1.0 |
2.0 |
4.0 |
260 |
2.30 |
|
-32 |
2 |
50.7 |
52 |
69.5 |
72.5 |
1.0 |
2.0 |
4.0 |
300 |
2.75 |
|
-40 |
2 1/2 |
63.7 |
65.3 |
83.5 |
86.5 |
0.8 |
1.6 |
3.2 |
800 |
3.50 |
|
-48 |
3 |
75.5 |
77.3 |
100.0 |
104.0 |
0.8 |
1.6 |
3.2 |
920 |
4.50 |
|
-56 |
3 1/2 |
88.5 |
90.5 |
113.0 |
117.0 |
0.8 |
1.6 |
3.2 |
1100 |
5.50 |
|
-64 |
4 |
101.5 |
104 |
126.0 |
130.0 |
0.8 |
1.6 |
3.2 |
1300 |
6.50 |
