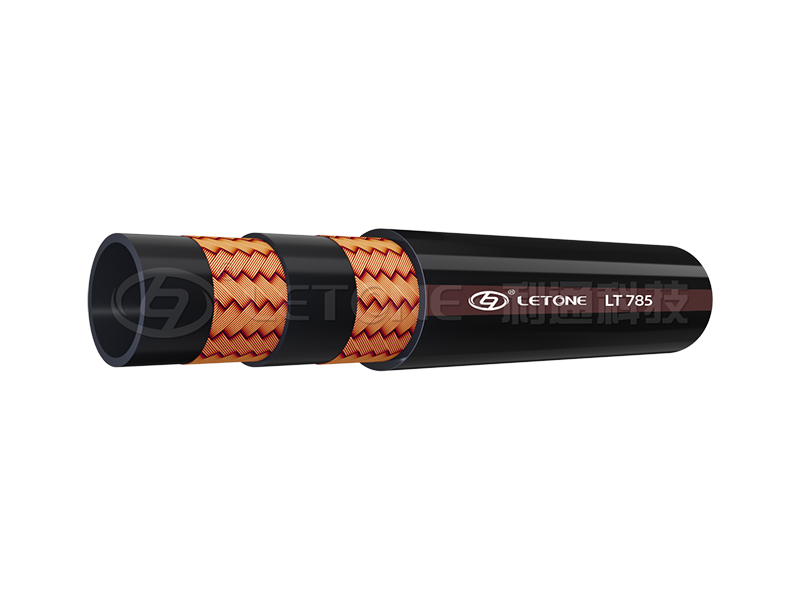

LT785
GB1186 Compressed Air Hose
Hose Construction & Applications
- Inner Tube: Black synthetic rubber
- Reinforcement: One or two braids of textile
- Outer Layer: Weather and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +70°C (-40°F ~ +158°F)
- Application: Suitable to all kinds of power machinery and pneumatic tools to convey compressed air water or noble gases under the normal temperature
Description
Technical Specifications
|
SIZE |
I.D |
O.D |
Max.W.P |
Min.B.P |
W.T |
||
|
DASH |
IN |
Min |
Max |
Min |
MPa |
MPa |
Kg/m |
|
-8 |
1/2 |
12.5 |
14.0 |
23 |
1.0 |
4.0 |
0.34 |
|
-10 |
5/8 |
15.5 |
17.0 |
26 |
1.0 |
4.0 |
0.40 |
|
-12 |
3/4 |
18.5 |
20.0 |
29 |
1.0 |
4.0 |
0.45 |
|
-16 |
1 |
24.5 |
26.0 |
35 |
1.0 |
4.0 |
0.48 |
|
-20 |
11/4 |
31.5 |
33.0 |
45 |
1.0 |
4.0 |
0.95 |
|
-24 |
11/2 |
37.5 |
39.0 |
52 |
1.0 |
4.0 |
1.25 |
|
-32 |
2 |
50.0 |
52.5 |
66 |
1.0 |
4.0 |
1.60 |
|
-8 |
1/2 |
12.5 |
14.0 |
23 |
2.0 |
8.0 |
0.34 |
|
-10 |
5/8 |
15.5 |
17.0 |
26 |
2.0 |
8.0 |
0.41 |
|
-12 |
3/4 |
18.5 |
20.0 |
29 |
2.0 |
8.0 |
0.46 |
|
-16 |
1 |
24.5 |
26.0 |
35 |
2.0 |
8.0 |
0.50 |
|
-20 |
11/4 |
31.5 |
33.0 |
45 |
2.0 |
8.0 |
0.97 |
|
-24 |
11/2 |
37.5 |
39.0 |
52 |
2.0 |
8.0 |
1.27 |
|
-32 |
2 |
50.0 |
52.5 |
66 |
2.0 |
8.0 |
1.70 |
