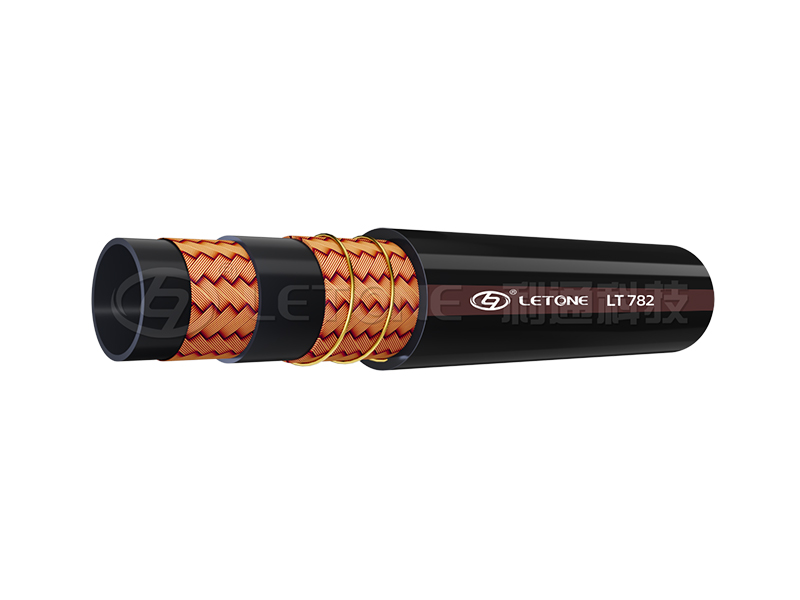

LT782
SAE 100R4 Hydraulic Suction And Return Line
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of textile and a helical spiral-wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable to convey medium like petroleum based hydraulic oil,lubrication oil,water,and air.
Description
Technical Specifications
|
SIZE |
I.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
W.T |
|||||
|
DASH |
IN |
Min |
Max |
Max |
MPa |
psi |
MPa |
psi |
MPa |
psi |
kg/m |
|
-12 |
3/4 |
18.2 |
19.8 |
34.0 |
2.1 |
305 |
4.2 |
610 |
8.4 |
1210 |
0.68 |
|
-16 |
1 |
24.6 |
26.2 |
40.0 |
1.7 |
250 |
3.5 |
510 |
7 |
1015 |
0.84 |
|
-20 |
11/4 |
30.6 |
33.0 |
48.0 |
1.4 |
200 |
2.8 |
410 |
5.6 |
810 |
1.13 |
|
-24 |
11/2 |
36.9 |
39.3 |
54.0 |
1.05 |
150 |
2.1 |
305 |
4.2 |
610 |
1.41 |
|
-32 |
2 |
49.2 |
52.4 |
68.0 |
0.7 |
100 |
1.4 |
200 |
2.8 |
410 |
1.85 |
|
-40 |
21/2 |
61.9 |
65.1 |
81.0 |
0.4 |
60 |
0.85 |
120 |
1.7 |
250 |
2.28 |
|
-48 |
3 |
74.6 |
77.8 |
93.0 |
0.4 |
60 |
0.8 |
120 |
1.6 |
230 |
2.64 |
|
-56 |
31/2 |
87.3 |
90.5 |
106.0 |
0.3 |
40 |
0.6 |
90 |
1.25 |
180 |
3.02 |
|
-64 |
4 |
100.0 |
103.2 |
120.0 |
0.25 |
40 |
0.6 |
70 |
1 |
145 |
3.21 |
