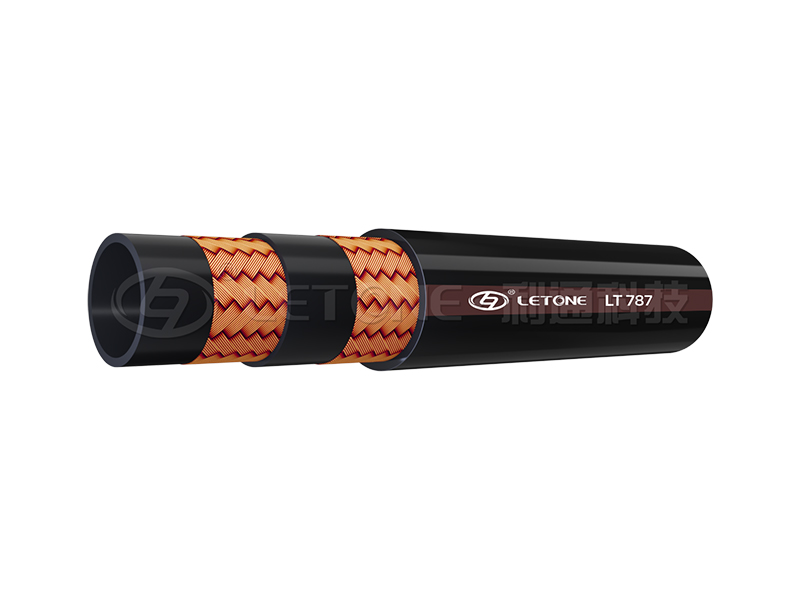

LT787
EN854 2TE&3TE Oil Return Line
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of textile
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable to convey petroleum-based hydraulic oil,crude oil,fuel oil, lubricating oil,emulsified oil, air,and water
Description
Technical Specifications
|
SIZE |
I.D. |
O.D. |
Max.W.P. |
P.P |
Min.B.P. |
Min.B.R. |
W.T |
|||
|
DASH |
IN |
Min |
Max |
Min |
Max |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-4 |
1/4-1 |
6.1 |
6.9 |
12.4 |
13.6 |
7.5 |
15 |
30 |
40 |
0.14 |
|
-5 |
5/16-1 |
7.4 |
8.5 |
14.2 |
15.4 |
6.8 |
13.6 |
27.2 |
50 |
0.16 |
|
-6 |
3/8-1 |
9.3 |
10.1 |
16.0 |
17.2 |
6.3 |
12.6 |
25.2 |
60 |
0.18 |
|
-8 |
1/2-1 |
12.3 |
13.5 |
18.9 |
20.5 |
5.8 |
11.6 |
23.2 |
70 |
0.22 |
|
-10 |
5/8-1 |
15.5 |
16.7 |
23.0 |
24.6 |
5.0 |
10 |
20.0 |
90 |
0.30 |
|
-12 |
3/4-1 |
18.5 |
19.8 |
26.4 |
28.0 |
4.5 |
9 |
18.0 |
110 |
0.33 |
|
-16 |
1-1 |
24.6 |
26.2 |
33.3 |
35.7 |
4.0 |
8 |
16.0 |
130 |
0.46 |
|
-20 |
1 1/4-1 |
30.8 |
32.8 |
40.8 |
43.2 |
3.5 |
7 |
14.0 |
140 |
0.22 |
|
-24 |
1/4-2 |
6.1 |
6.9 |
13.9 |
15.1 |
14.5 |
29 |
58 |
45 |
0.19 |
|
-32 |
5/16-2 |
7.4 |
8.5 |
16.2 |
17.4 |
13.0 |
26 |
52 |
55 |
0.23 |
|
-6 |
3/8-2 |
9.3 |
10.1 |
17.9 |
19.1 |
11.0 |
22 |
44.4 |
70 |
0.26 |
|
-8 |
1/2-2 |
12.3 |
13.5 |
21.0 |
22.6 |
9.3 |
18.6 |
37.2 |
85 |
0.30 |
|
-10 |
5/8-2 |
15.5 |
16.7 |
25.4 |
27.0 |
8.0 |
16 |
32.0 |
105 |
0.41 |
|
-12 |
3/4-2 |
18.2 |
19.8 |
28.2 |
29.8 |
7.0 |
14 |
28.0 |
130 |
0.47 |
|
-16 |
1-2 |
24.6 |
26.2 |
35.3 |
37.7 |
5.5 |
11 |
22.0 |
150 |
0.69 |
|
-20 |
1 1/4-2 |
30.8 |
32.8 |
40.8 |
43.2 |
4.5 |
9 |
18.0 |
190 |
0.73 |
|
-24 |
1 1/2-2 |
37.1 |
39.1 |
47.8 |
50.2 |
4.0 |
8 |
16.0 |
240 |
0.87 |
|
-32 |
2-2 |
50.0 |
52.0 |
60.8 |
64.0 |
3.0 |
6 |
13.2 |
300 |
1.16 |
