LT699
ISO 18752-AC/BC Artery Wire Braid Hydraulic Hose
Hose Construction & Applications

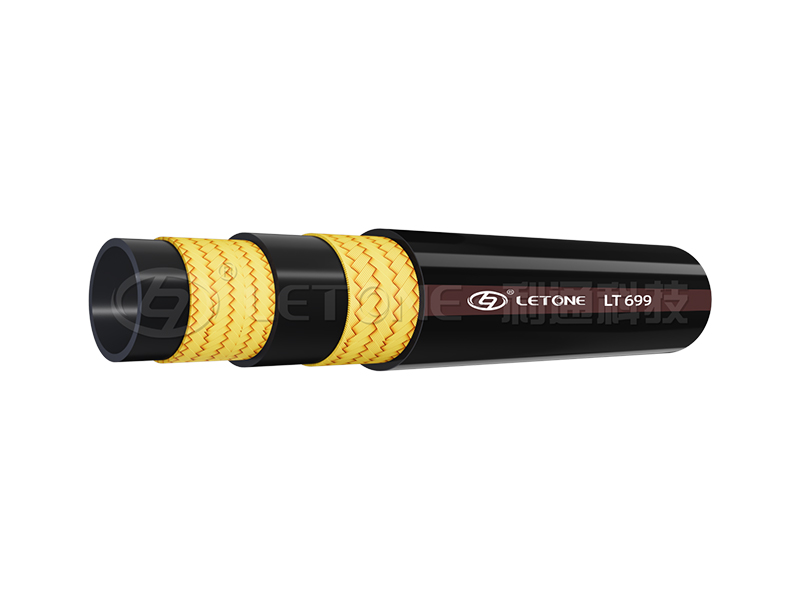

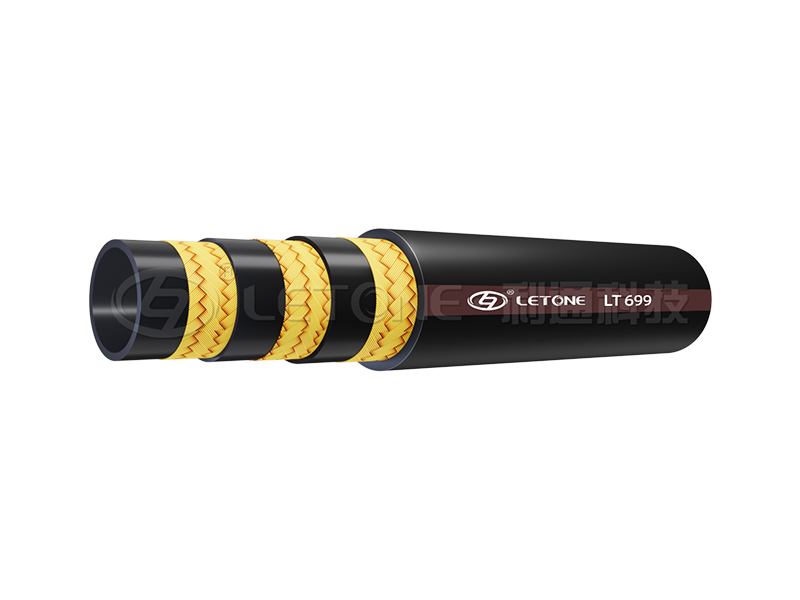

- Inner Tube: NBR synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire,one braid≥300,000 impulse cycles,two braids≥500,000 impulse cycles
- Outer Layer: Skiving-free oil,abrasion,and weather resistant synthetic rubber
- Temperature Range: -40℃~+100℃(-40°F~+212°F);-55℃~+100℃(-67°F~+212°F)
- Application: Remarkable performance on high pressure and high impulse.Widely apply to excavator and other heavy duty construction machinery.
Description
Technical Specifications
|
SIZE |
Specification |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.Impulse |
Min.B.R |
W.T |
|||
|
10K |
|||||||||||||
|
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||||
|
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
CYCLES |
mm |
kg/m |
|
|
-4 |
1/4-1 |
5.8 |
6.5 |
10.7 |
11.7 |
12.9 |
13.9 |
25 |
50 |
100 |
30 |
80 |
0.20 |
|
-5 |
5/16-1 |
7.7 |
8.5 |
12.5 |
13.5 |
14.7 |
15.7 |
25 |
50 |
100 |
30 |
92 |
0.25 |
|
-6 |
3/8-1 |
9.8 |
10.5 |
14.5 |
15.5 |
16.9 |
17.9 |
21 |
42 |
84 |
30 |
104 |
0.32 |
|
-8 |
1/2-1 |
12.8 |
13.5 |
17.7 |
18.7 |
20.2 |
21.2 |
18 |
36 |
72 |
30 |
144 |
0.40 |
|
-10 |
5/8-1 |
15.8 |
16.6 |
20.7 |
21.7 |
23.5 |
24.5 |
14 |
28 |
56 |
30 |
160 |
0.50 |
|
-12 |
3/4-1 |
18.8 |
19.8 |
24.4 |
25.4 |
27.0 |
29.0 |
14 |
28 |
56 |
30 |
192 |
0.67 |
|
-16 |
1-1 |
24.8 |
25.8 |
32 |
33 |
35.4 |
36.6 |
9 |
18 |
36 |
30 |
240 |
0.91 |
|
-20 |
11/4-1 |
31.4 |
33 |
39.3 |
40.7 |
42.7 |
44.3 |
6.3 |
13 |
25 |
30 |
400 |
1.19 |
|
-24 |
11/2-1 |
37.7 |
39.3 |
45 |
46.4 |
48.4 |
50 |
5 |
10 |
20 |
30 |
480 |
1.33 |
|
-32 |
2-1 |
50.4 |
52 |
58.8 |
60.2 |
62.2 |
63.8 |
4 |
8 |
16 |
30 |
560 |
1.87 |
|
-4 |
1/4-2 |
5.8 |
6.5 |
12.6 |
13.6 |
14.5 |
15.5 |
42 |
84 |
168 |
50 |
80 |
0.35 |
|
-5 |
5/16-2 |
7.7 |
8.5 |
14 |
15 |
15.8 |
16.8 |
35 |
84 |
140 |
50 |
92 |
0.40 |
|
-6 |
3/8-2 |
9.8 |
10.5 |
16.4 |
17.4 |
18.2 |
19.2 |
35 |
70 |
140 |
50 |
104 |
0.52 |
|
-8 |
1/2-2 |
12.8 |
13.5 |
19.5 |
20.5 |
21.7 |
22.7 |
28 |
56 |
112 |
50 |
144 |
0.63 |
|
-10 |
5/8-2 |
15.8 |
16.6 |
22.5 |
23.5 |
24.9 |
25.9 |
28 |
56 |
112 |
50 |
160 |
0.76 |
|
-12 |
3/4-2 |
18.8 |
19.8 |
26.5 |
27.5 |
29 |
30.2 |
25 |
50 |
100 |
50 |
192 |
0.94 |
|
-16 |
1-2 |
24.8 |
25.8 |
33.5 |
34.5 |
36.5 |
37.7 |
21 |
42 |
84 |
50 |
240 |
1.37 |
|
-20 |
11/4-2 |
31.4 |
33.0 |
43.5 |
44.9 |
46.7 |
48.3 |
14 |
28 |
56 |
50 |
400 |
2.00 |
|
-24 |
11/2-2 |
37.7 |
39.3 |
49.8 |
51.2 |
53.2 |
54.8 |
9.0 |
18 |
36 |
50 |
480 |
2.30 |
|
-32 |
2-2 |
50.4 |
52.0 |
62.5 |
63.9 |
66 |
67.6 |
8.0 |
16 |
32 |
50 |
610 |
3.02 |
