LT681

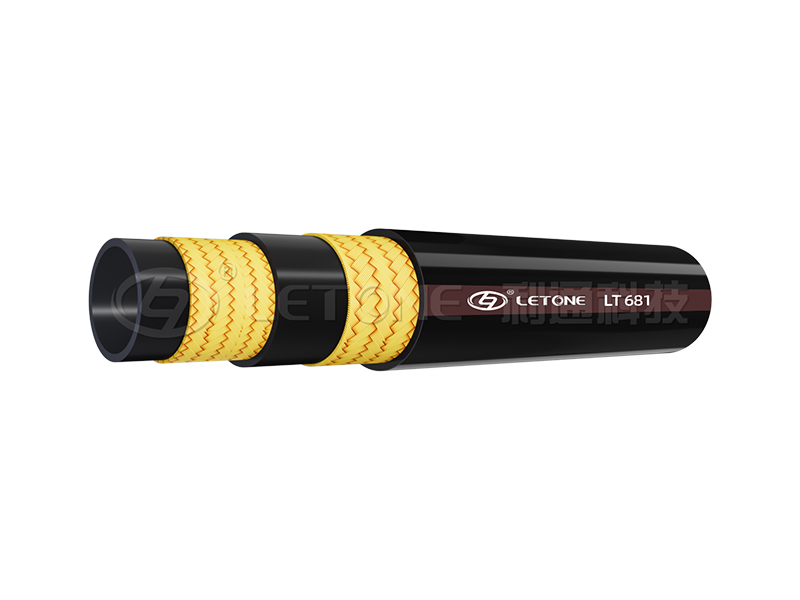

SAE 100RAT|EN853 SN|DNV Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C +100°C (-40°F +212°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil.
Description
Technical Specifications
|
Specification |
I.D |
W.D |
O.D. |
Max.W.P |
P.P |
Min.B.P. |
Min.B.R. |
W.T |
|||
|
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
Max.W.P |
||||
|
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
3/16-1 |
4.6 |
5.4 |
9.0 |
10.0 |
11.0 |
12.2 |
25.0 |
50.0 |
100.0 |
90 |
0.17 |
|
1/4-1 |
6.2 |
7.0 |
10.6 |
11.6 |
12.8 |
14.0 |
22.5 |
45.0 |
90.0 |
100 |
0.22 |
|
5/16-1 |
7.7 |
8.5 |
12.5 |
13.5 |
14.6 |
15.8 |
21.5 |
43.0 |
85.0 |
115 |
0.28 |
|
3/8-1 |
9.3 |
10.3 |
14.5 |
15.7 |
16.8 |
18.0 |
18.0 |
36.0 |
72.0 |
130 |
0.34 |
|
1/2-1 |
12.3 |
13.5 |
17.5 |
19.0 |
20.1 |
21.3 |
16.0 |
32.0 |
64.0 |
180 |
0.42 |
|
5/8-1 |
15.5 |
16.7 |
20.6 |
22.2 |
23.2 |
24.8 |
13.0 |
26.0 |
52.0 |
200 |
0.51 |
|
3/4-1 |
18.6 |
19.8 |
24.3 |
25.5 |
27.0 |
29.0 |
10.5 |
21.0 |
42.0 |
240 |
0.68 |
|
1-1 |
25.0 |
26.4 |
31.9 |
33.1 |
35.2 |
36.8 |
8.8 |
17.5 |
35.0 |
300 |
0.96 |
|
1 1/4-1 |
31.4 |
33.0 |
39.2 |
40.8 |
42.3 |
44.7 |
6.3 |
13.0 |
25.0 |
420 |
1.19 |
|
1 1/2-1 |
37.7 |
39.3 |
44.9 |
46.5 |
48.0 |
50.4 |
5.0 |
10.0 |
20.0 |
500 |
1.34 |
|
2-1 |
50.4 |
52.0 |
58.7 |
60.3 |
61.8 |
64.2 |
4.0 |
8.0 |
16.0 |
630 |
1.89 |
|
3/16-2 |
4.6 |
5.4 |
10.6 |
11.6 |
12.7 |
13.9 |
41.5 |
83.0 |
166.0 |
90 |
0.27 |
|
1/4-2 |
6.1 |
7.0 |
12.6 |
13.6 |
14.4 |
15.6 |
40.0 |
80.0 |
160.0 |
100 |
0.35 |
|
5/16-2 |
7.7 |
8.5 |
14.1 |
15.1 |
15.7 |
16.9 |
35.0 |
70.0 |
140.0 |
115 |
0.40 |
|
3/8-2 |
9.3 |
10.3 |
16.3 |
17.5 |
18.1 |
19.3 |
33.0 |
66.0 |
132.0 |
130 |
0.51 |
|
1/2-2 |
12.3 |
13.5 |
19.4 |
20.6 |
21.6 |
22.8 |
27.5 |
55.0 |
110.0 |
180 |
0.63 |
|
5/8-2 |
15.5 |
16.7 |
22.2 |
23.8 |
24.6 |
26.2 |
25.0 |
50.0 |
100.0 |
200 |
0.74 |
|
3/4-2 |
18.6 |
19.8 |
26.2 |
27.8 |
28.8 |
30.4 |
21.5 |
43.0 |
86.0 |
240 |
0.92 |
|
1-2 |
25.0 |
26.4 |
33.6 |
34.8 |
36.3 |
37.9 |
16.5 |
32.5 |
66.0 |
300 |
1.33 |
|
1 1/4-2 |
31.4 |
33.0 |
43.6 |
45.0 |
46.3 |
48.7 |
12.5 |
25.0 |
50.0 |
420 |
1.97 |
|
1 1/2-2 |
37.7 |
39.3 |
49.6 |
51.4 |
52.8 |
55.2 |
9.0 |
18.0 |
36.0 |
500 |
2.33 |
|
2-2 |
50.4 |
52.0 |
62.3 |
64.7 |
65.6 |
68.0 |
8.0 |
16.0 |
32.0 |
630 |
2.88 |
