LT682

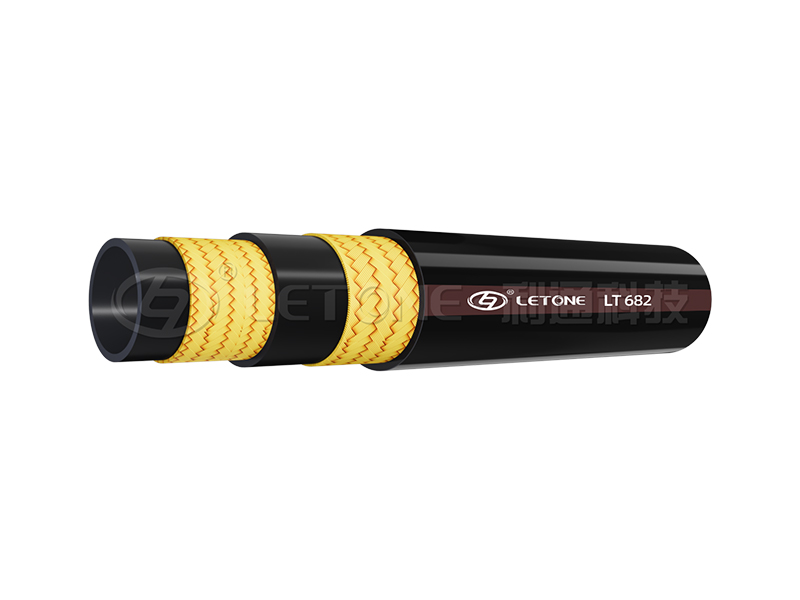

EN853 ST Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Application: Suitable for conveying water-based,petroleum-based, and biodegradable hydraulic oil.
Description
Technical Specifications
|
Specification |
I.D |
W.D |
O.D. |
MaxW.P |
P.P |
Min.B.P. |
Min.B.R. |
W.T |
|||
|
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
3/16-1 |
4.6 |
5.4 |
9.0 |
10.0 |
11.5 |
12.9 |
25.0 |
50.5 |
100.0 |
90 |
0.18 |
|
1/4-1 |
6.2 |
7.0 |
10.6 |
11.6 |
14.6 |
16.0 |
22.5 |
45.0 |
90.0 |
100 |
0.27 |
|
5/16-1 |
7.7 |
8.5 |
12.5 |
13.5 |
16.2 |
17.6 |
21.5 |
43.0 |
85.0 |
115 |
0.33 |
|
3/8-1 |
9.3 |
10.3 |
14.5 |
15.7 |
18.5 |
19.9 |
18.0 |
36.0 |
72.0 |
130 |
0.40 |
|
1/2-1 |
12.3 |
13.5 |
17.5 |
19.0 |
21.8 |
23.4 |
16.0 |
32.0 |
64.0 |
180 |
0.50 |
|
5/8-1 |
15.5 |
16.7 |
20.6 |
22.2 |
24.7 |
26.3 |
13.0 |
26.0 |
52.0 |
200 |
0.58 |
|
3/4-1 |
18.6 |
19.8 |
24.3 |
25.5 |
28.7 |
30.3 |
10.5 |
21.0 |
42.0 |
240 |
0.73 |
|
1-1 |
25.0 |
26.4 |
31.9 |
33.1 |
36.3 |
37.9 |
8.8 |
17.5 |
35.0 |
300 |
1.04 |
|
1 1/4-1 |
31.4 |
33.0 |
39.2 |
40.8 |
43.3 |
45.7 |
6.3 |
15.0 |
25.0 |
420 |
1.28 |
|
1 1/2-1 |
37.7 |
39.3 |
44.9 |
46.5 |
49.8 |
52.2 |
5.0 |
10.0 |
20.0 |
500 |
1.51 |
|
2-1 |
50.4 |
52.0 |
58.7 |
60.3 |
64.3 |
66.7 |
4.0 |
8.0 |
16.0 |
630 |
2.20 |
|
3/16-2 |
4.6 |
5.4 |
10.6 |
11.6 |
14.6 |
16.0 |
41.5 |
83.0 |
165.0 |
90 |
0.33 |
|
1/4-2 |
6.1 |
7.0 |
12.6 |
13.6 |
16.3 |
17.7 |
40.0 |
80.0 |
160.0 |
100 |
0.42 |
|
5/16-2 |
7.7 |
8.5 |
14.1 |
15.1 |
18 |
19.4 |
35.0 |
70.0 |
140.0 |
115 |
0.47 |
|
3/8-2 |
9.3 |
10.3 |
16.3 |
17.5 |
20.3 |
21.7 |
33.0 |
66.0 |
132.0 |
130 |
0.60 |
|
1/2-2 |
12.3 |
13.5 |
19.4 |
20.6 |
23.4 |
25.0 |
27.5 |
55.0 |
110.0 |
180 |
0.73 |
|
5/8-2 |
15.5 |
16.7 |
22.2 |
23.8 |
26.6 |
28.2 |
25.0 |
50.0 |
100.0 |
200 |
0.85 |
|
3/4-2 |
18.6 |
19.8 |
26.2 |
27.8 |
30.6 |
32.2 |
21.5 |
43.0 |
85.0 |
240 |
1.03 |
|
1-2 |
25.0 |
26.4 |
33.6 |
34.8 |
37.7 |
39.3 |
16.5 |
32.5 |
65.0 |
300 |
1.44 |
|
1 1/4-2 |
31.4 |
33.0 |
43.6 |
45.0 |
48.0 |
50.4 |
12.5 |
25.0 |
50.0 |
420 |
2.14 |
|
1 1/2-2 |
37.7 |
39.3 |
49.6 |
51.4 |
54.4 |
56.8 |
9.0 |
18.0 |
36.0 |
500 |
2.50 |
|
2-2 |
50.4 |
52.0 |
62.3 |
64.7 |
67.0 |
69.4 |
8.0 |
16.0 |
32.0 |
630 |
3.07 |
