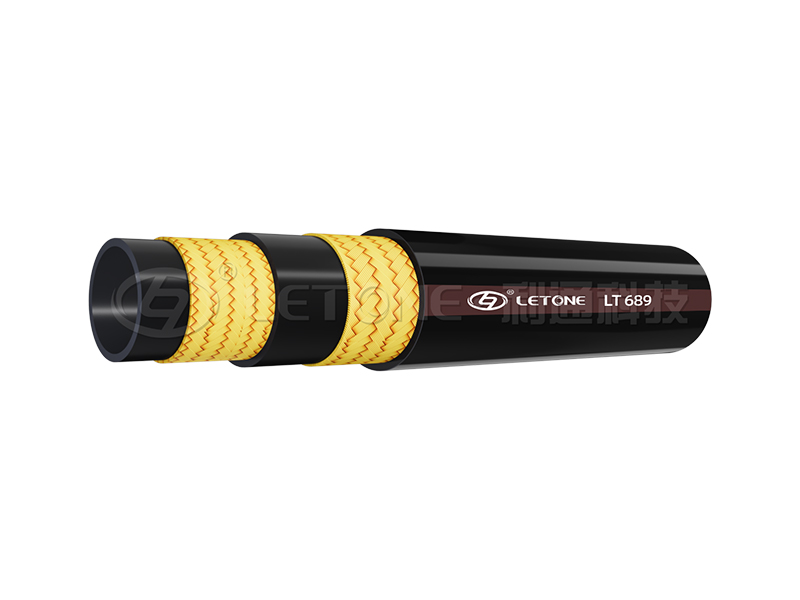

LT689
SAE 100R19 Compact Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil.
Description
Technical Specifications
|
Specification |
Specification |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
SIZE |
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-3 |
3/16 |
4.6 |
5.4 |
10.3 |
11.9 |
11.5 |
12.7 |
28 |
56 |
112 |
45 |
0.237 |
|
-4 |
1/4 |
6.2 |
7.0 |
11.1 |
12.1 |
13.0 |
14.4 |
28 |
56 |
112 |
50 |
0.267 |
|
-5 |
5/16 |
7.7 |
8.5 |
12.7 |
13.7 |
14.6 |
16.0 |
28 |
56 |
112 |
55 |
0.321 |
|
-6 |
3/8 |
9.3 |
10.1 |
14.6 |
15.6 |
16.4 |
18.0 |
28 |
56 |
112 |
65 |
0.359 |
|
-8 |
1/2 |
12.3 |
13.5 |
18.0 |
19.0 |
19.3 |
21.3 |
28 |
56 |
112 |
90 |
0.492 |
|
-10 |
5/8 |
15.5 |
16.7 |
20.9 |
21.9 |
22.5 |
24.5 |
28 |
56 |
112 |
100 |
0.633 |
|
-12 |
3/4 |
18.6 |
19.8 |
24.9 |
25.9 |
26.3 |
28.7 |
28 |
56 |
112 |
120 |
0.764 |
|
-16 |
1 |
25.0 |
26.4 |
31.4 |
33.0 |
33.2 |
35.5 |
28 |
56 |
112 |
150 |
