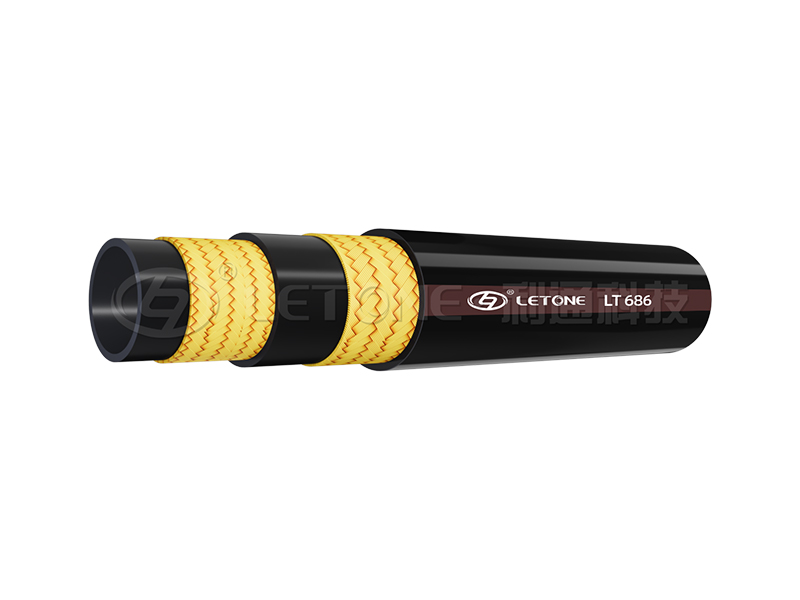

LT686
MT/T98 Wire Braid Hydraulic Hose For Mining
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable for conveying medium like mineral oil,water-based hydraulic oil,or water in coal mining machinery such as coal mining hydraulic support and coal shearer.
Description
Technical Specifications
|
Specification |
Specification |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
|||
|
SIZE |
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
64 |
2 1/2-1 |
63.5 |
65.3 |
71 |
73 |
76 |
80 |
3.5 |
5.25 |
10.5 |
800 |
2.42 |
|
76 |
3-1 |
75.5 |
77.5 |
83 |
85 |
88 |
92 |
3 |
4.5 |
9 |
920 |
2.86 |
|
85 |
3 3/8-1 |
84.5 |
86.7 |
92 |
94 |
97 |
101 |
2.5 |
3.75 |
7.5 |
1000 |
3.10 |
|
89 |
3 1/2-1 |
88.4 |
90 |
96.5 |
98.5 |
102 |
106 |
2.5 |
3.75 |
7.5 |
1100 |
3.34 |
|
102 |
4-1 |
101 |
104.5 |
110 |
115 |
116 |
121 |
2 |
3 |
6 |
1300 |
3.78 |
|
64 |
2 1/2-2 |
63.5 |
65.3 |
73 |
75 |
78 |
80 |
7 |
10.5 |
21 |
800 |
3.30 |
|
76 |
3-2 |
75.5 |
77.5 |
85 |
87 |
90 |
94 |
6 |
9 |
18 |
920 |
3.90 |
|
85 |
3 3/8-2 |
84.5 |
86.7 |
94 |
96 |
99 |
103 |
5 |
7.5 |
15 |
1000 |
4.30 |
|
89 |
3 1/2-2 |
88.4 |
90 |
98.5 |
100.5 |
104 |
108 |
5 |
7.5 |
15 |
1100 |
4.54 |
|
102 |
4-2 |
101 |
104.5 |
112 |
116 |
118 |
123 |
4 |
6 |
12 |
1300 |
5.50 |
