LT683

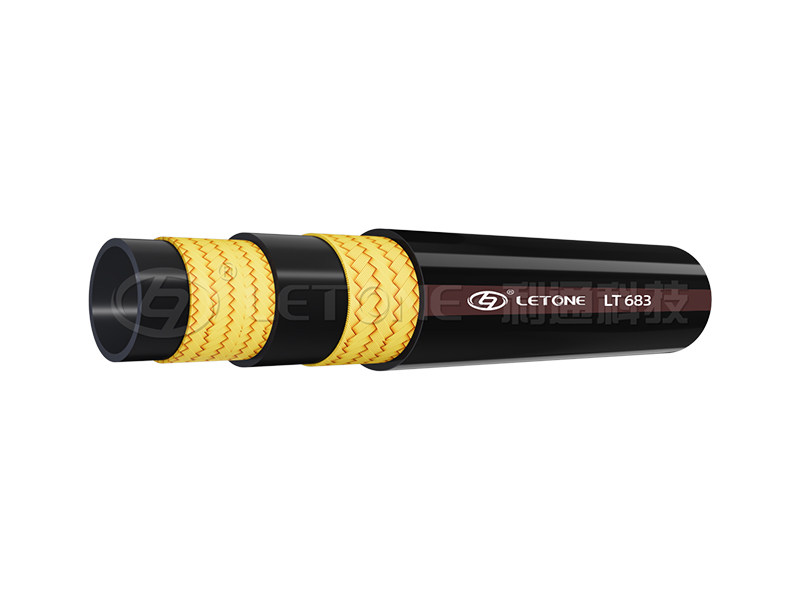

EN857 SC Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil, weather, and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil
Description
Technical Specifications
|
Specification |
I.D |
W.D |
O.D. |
Max.W.P |
P.P |
Min.B.P. |
Min.B.R. |
W.T |
|||||||
|
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||||||
|
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
MPa |
psi |
inch |
mm |
kg/m |
|
1/4-1 |
6.1 |
6.9 |
9.9 |
10.9 |
11.8 |
13.2 |
22.5 |
3260 |
45.0 |
6265 |
90.0 |
13050 |
2.95 |
75 |
0.18 |
|
5/16-1 |
7.7 |
8.5 |
11.2 |
12.2 |
13.1 |
14.5 |
21.5 |
3120 |
43.0 |
6235 |
86.0 |
12470 |
3.35 |
85 |
0.20 |
|
3/8-1 |
9.3 |
10.1 |
13.3 |
14.3 |
15.1 |
16.5 |
18.0 |
2610 |
36.0 |
5220 |
72.0 |
10440 |
3.54 |
90 |
0.27 |
|
1/2-1 |
12.3 |
13.5 |
16.4 |
17.6 |
18.9 |
20.3 |
16.0 |
2320 |
32.0 |
4640 |
64.0 |
9280 |
5.12 |
130 |
0.35 |
|
5/8-1 |
15.5 |
16.7 |
19.8 |
21.0 |
21.9 |
23.3 |
13.0 |
1885 |
26.0 |
3770 |
52.0 |
7540 |
5.91 |
150 |
0.42 |
|
3/4-1 |
18.6 |
19.8 |
23.1 |
24.5 |
25.6 |
27.2 |
10.5 |
1520 |
21.0 |
3045 |
42.0 |
6090 |
7.09 |
180 |
0.54 |
|
1-1 |
25.0 |
26.4 |
30.5 |
31.9 |
33.2 |
34.8 |
8.8 |
1280 |
17.6 |
2550 |
35.5 |
5100 |
9.06 |
230 |
0.78 |
|
1/4-2 |
6.1 |
6.9 |
11.2 |
12.2 |
12.9 |
14.3 |
40.0 |
5800 |
80 |
11600 |
160.0 |
23200 |
2.96 |
75 |
0.28 |
|
5/16-2 |
7.7 |
8.5 |
12.8 |
13.8 |
14.5 |
15.9 |
35.0 |
5075 |
70 |
10150 |
140.0 |
20300 |
3.35 |
85 |
0.32 |
|
3/8-2 |
9.3 |
10.1 |
14.9 |
15.9 |
16.8 |
18.2 |
33 |
4785 |
66 |
9570 |
132.0 |
19140 |
3.54 |
90 |
0.43 |
|
1/2-2 |
12.3 |
13.5 |
18.0 |
19.2 |
20.0 |
21.6 |
27.5 |
3990 |
55 |
7975 |
110.0 |
15950 |
5.12 |
130 |
0.52 |
|
5/8-2 |
15.5 |
16.7 |
21.4 |
22.6 |
23.2 |
24.8 |
25 |
3625 |
50 |
7150 |
100.0 |
14500 |
6.69 |
170 |
0.66 |
|
3/4-2 |
18.6 |
19.8 |
25.0 |
26.4 |
27.4 |
29.0 |
21.5 |
3120 |
43 |
6235 |
86.0 |
12470 |
7.87 |
200 |
0.83 |
|
1-2 |
25.0 |
26.4 |
32.4 |
33.8 |
34.5 |
36.1 |
16.5 |
2390 |
33 |
4785 |
66.0 |
9570 |
9.84 |
250 |
1.17 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
