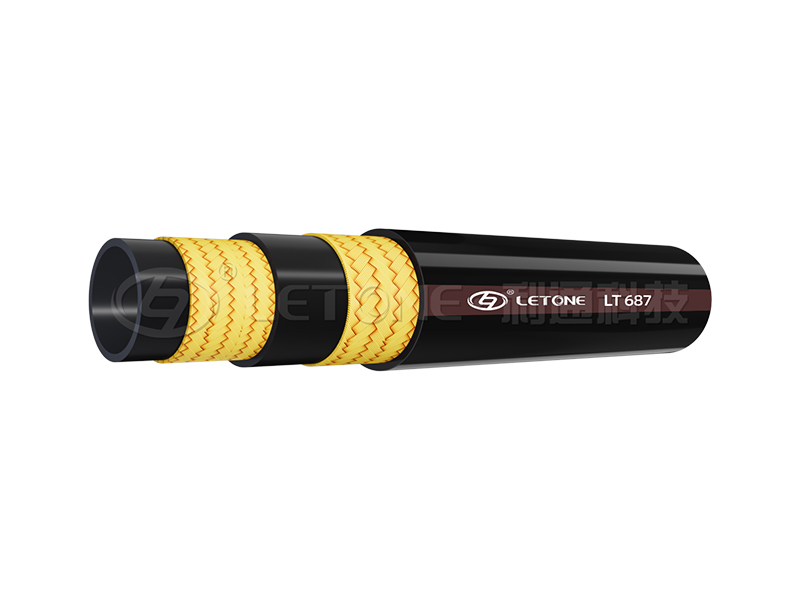

LT687
SAE 100R16 Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black hot oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40℃~+100℃(-40°F~+212°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil.
Description
Technical Specifications
|
Specification |
Specification |
I.D |
W.D |
O.D |
Max.W.P |
P.P |
Min.B.P |
Min.B.R |
W.T |
||||||
|
SIZE |
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
||||||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
psi |
MPa |
psi |
MPa |
psi |
mm |
kg/m |
|
-4 |
1/4 |
6.2 |
7.0 |
10.7 |
11.7 |
12.6 |
13.8 |
40 |
5800 |
80 |
11600 |
160 |
23200 |
50 |
0.3 |
|
-5 |
5/16 |
7.7 |
8.5 |
12.1 |
13.3 |
14.4 |
15.6 |
35 |
5075 |
70 |
10150 |
140 |
20300 |
55 |
0.34 |
|
-6 |
3/8 |
9.3 |
10.1 |
14.5 |
15.5 |
16.4 |
17.6 |
33 |
4785 |
66 |
9570 |
132 |
19140 |
65 |
0.42 |
|
-8 |
1/2 |
12.3 |
13.5 |
17.9 |
18.9 |
19.9 |
21.1 |
27.5 |
3990 |
55 |
7975 |
110 |
15950 |
90 |
0.54 |
|
-10 |
5/8 |
15.5 |
16.7 |
21.4 |
22.6 |
23.2 |
24.8 |
25 |
3625 |
50 |
7150 |
100 |
14500 |
100 |
0.68 |
|
-12 |
3/4 |
18.6 |
19.8 |
25.1 |
26.3 |
27.2 |
28.8 |
21.5 |
3120 |
43 |
6235 |
86 |
12470 |
120 |
0.80 |
|
-16 |
1 |
25.0 |
26.4 |
32.3 |
33.9 |
34.1 |
36.5 |
16.5 |
2390 |
33 |
4785 |
66 |
9570 |
150 |
1.15 |
|
-20 |
1 1/4 |
31.4 |
33.0 |
40.3 |
41.9 |
42.8 |
45.2 |
12.5 |
1813 |
25 |
3625 |
50 |
7150 |
210 |
1.83 |
