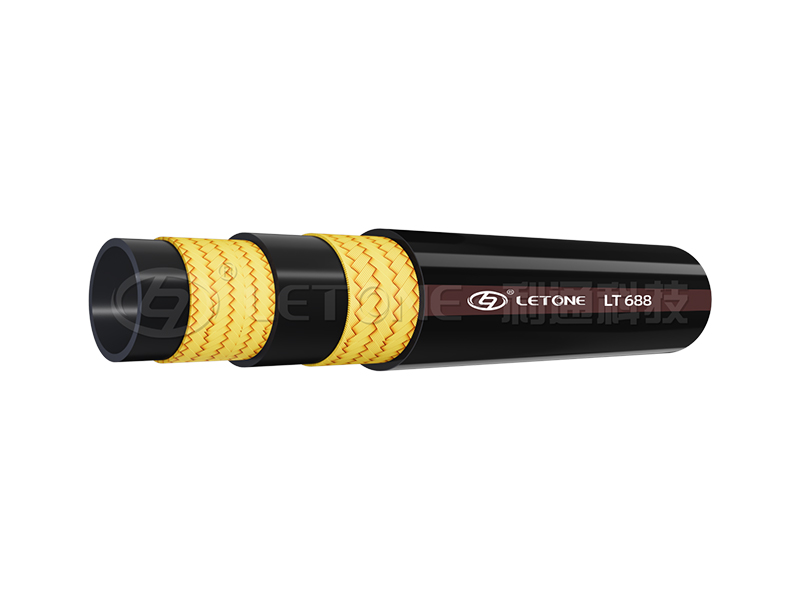

LT688
SAE 100R17 Wire Braid Hydraulic Hose
Hose Construction & Applications
- Inner Tube: Black oil resistant synthetic rubber
- Reinforcement: One or two braids of high tensile super flexible steel wire
- Outer Layer: Black oil,weather,and abrasion resistant synthetic rubber
- Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
- Application: Suitable for conveying water-based,petroleum-based,and biodegradable hydraulic oil.
Description
Technical Specifications
|
Specification |
Specification |
I.D |
W.D |
O.D. |
Max.W.P |
P.P |
Min.B.P. |
Min.B.R. |
W.T |
|||
|
SIZE |
SIZE |
Min |
Max |
Min |
Max |
Min |
Max |
|||||
|
DASH |
IN |
mm |
mm |
mm |
mm |
mm |
mm |
MPa |
MPa |
MPa |
mm |
kg/m |
|
-4 |
1/4 |
6.2 |
7.0 |
10.3 |
11.3 |
12.2 |
13.4 |
21 |
42 |
84 |
50 |
0.19 |
|
-5 |
5/16 |
7.7 |
8.5 |
11.8 |
12.8 |
13.7 |
14.9 |
21 |
42 |
84 |
55 |
0.22 |
|
-6 |
3/8 |
9.3 |
10.1 |
13.6 |
14.6 |
15.5 |
16.7 |
21 |
42 |
84 |
65 |
0.28 |
|
-8 |
1/2 |
12.3 |
13.5 |
16.8 |
17.8 |
19.4 |
20.6 |
21 |
42 |
84 |
90 |
0.38 |
|
-10 |
5/8 |
15.5 |
16.7 |
22.2 |
23.2 |
23.9 |
25.1 |
21 |
42 |
84 |
100 |
0.68 |
|
-12 |
3/4 |
18.6 |
19.8 |
25.1 |
26.3 |
26.9 |
28.5 |
21 |
42 |
84 |
120 |
0.83 |
|
-16 |
1 |
25.5 |
26.4 |
33.2 |
34.4 |
35.7 |
37.3 |
21 |
42 |
84 |
150 |
1.29 |
The items marked with * are for reference only; the actual specifications are subject to the hose body.
