LT1213
ISO 1823 Petroleum Fuel Suction & Discharge Hose

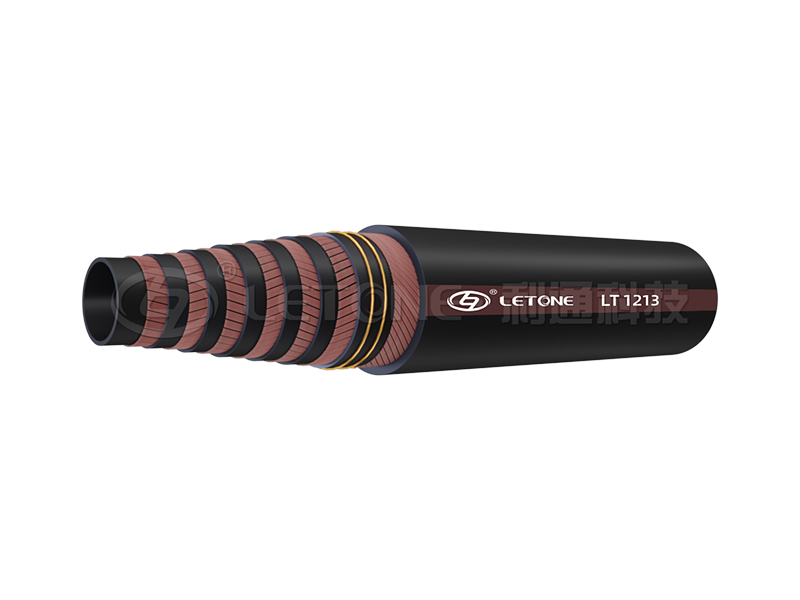

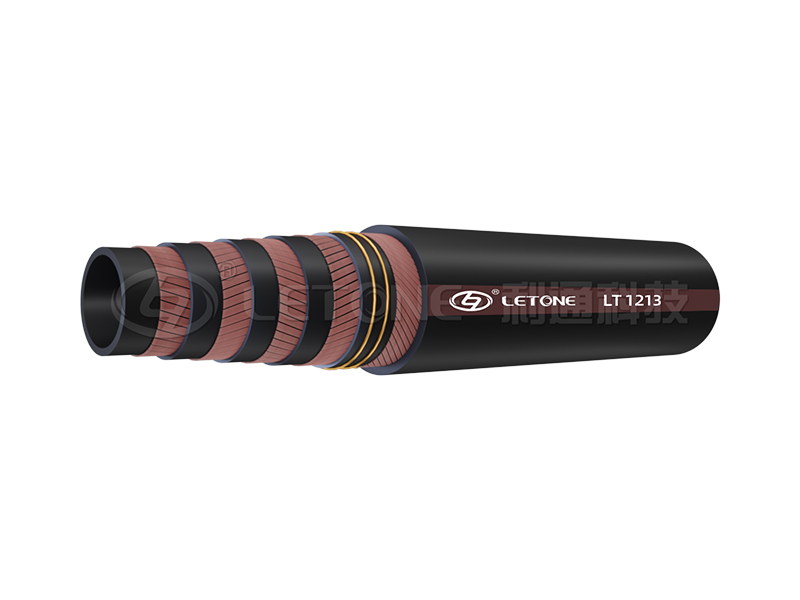

Hose Construction & Applications
- Application: Suitable for petroleum-based products transfer, such as gasoline, petroleum oil, ethanol,diesel, etc.
- Inner Tube: Black conductive NBR synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibersand helix spiral-wire
- Outer Layer: Black NBR and PVC mixed rubber
- Temperature Range: -30°C to 82°C (-22°F to 180°F)
Description
Technical Specifications
*The hose dimension, pressure and color can be customized based on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.68 |
68 |
300 |
750 |
400 |
1.65 |
|
3 |
76 |
3.78 |
96 |
300 |
750 |
570 |
2.75 |
|
4 |
102 |
4.80 |
122 |
300 |
750 |
750 |
4.65 |
|
6 |
152 |
6.97 |
177 |
300 |
750 |
1210 |
6.80 |
