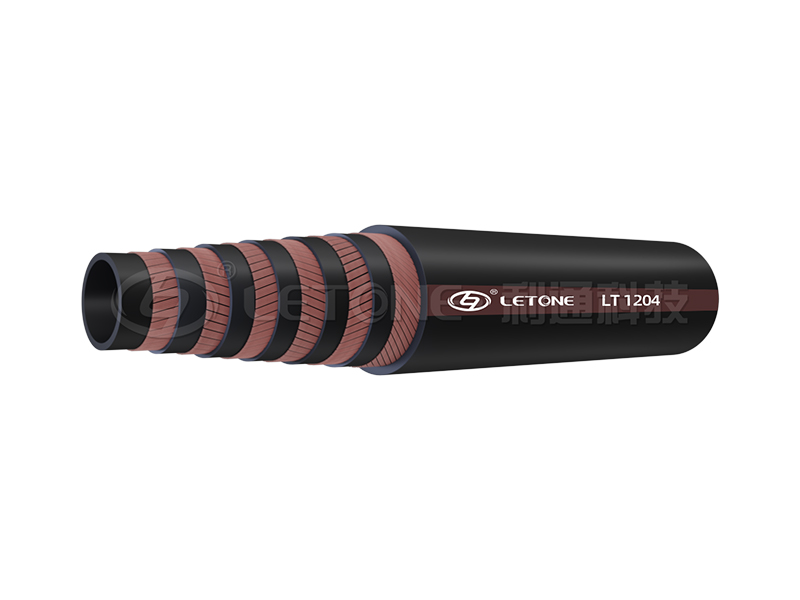

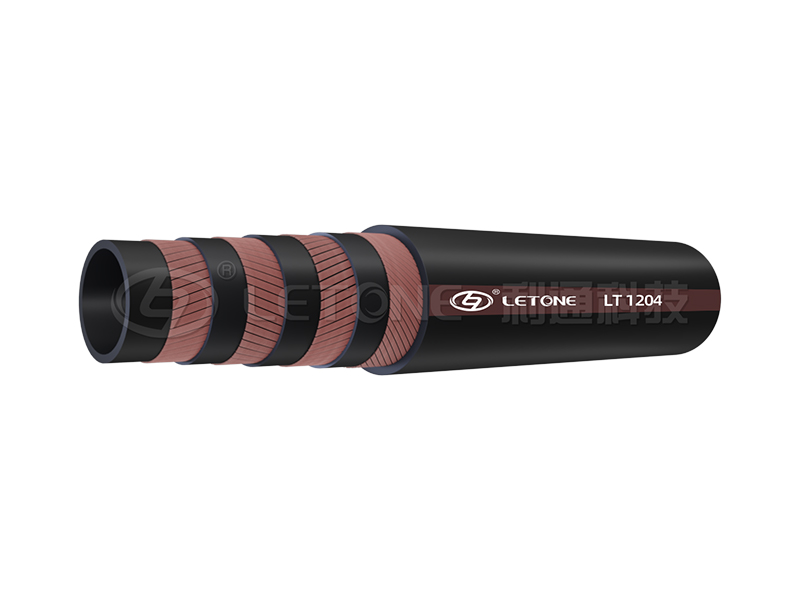

LT1204
SAE J2006 Marine Wet Exhaust Hose
Hose Construction & Applications
- Application: Could be used for engine water circulation, discharge lines, heat exchangers and wet exhaust connections.
- Inner Tube: Black NBR synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers
- Outer Layer: Black NBR and PVC mixed rubber
- Temperature Range: -30°C to 100°C (-22°F to 212°F)
Description
Technical Specifications
*The hose dimension, pressure and color can be customized based on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.56 |
65 |
75 |
188 |
350 |
1.60 |
|
3 |
76 |
3.54 |
90 |
75 |
188 |
520 |
2.60 |
|
4 |
102 |
4.65 |
118 |
75 |
188 |
700 |
4.50 |
|
5 |
127 |
5.75 |
146 |
75 |
188 |
950 |
6.00 |
|
8 |
203 |
8.82 |
224 |
75 |
188 |
1400 |
13.00 |
