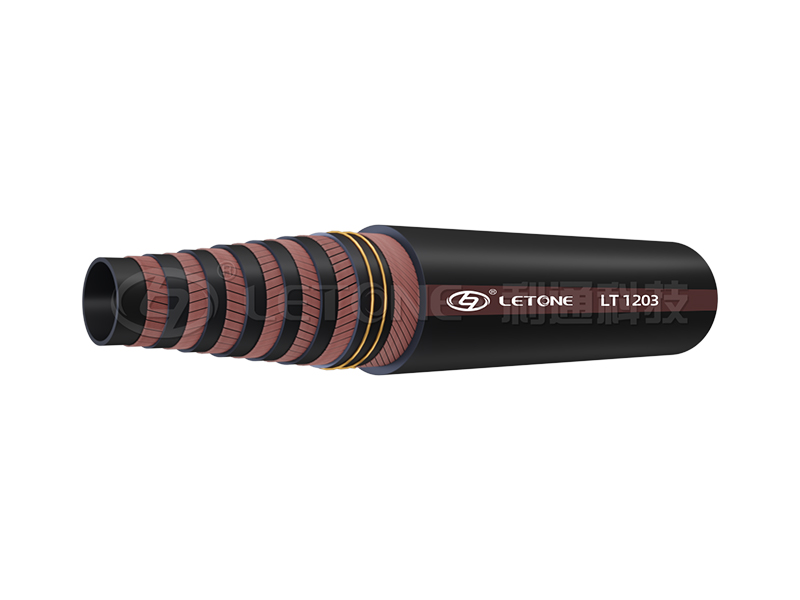

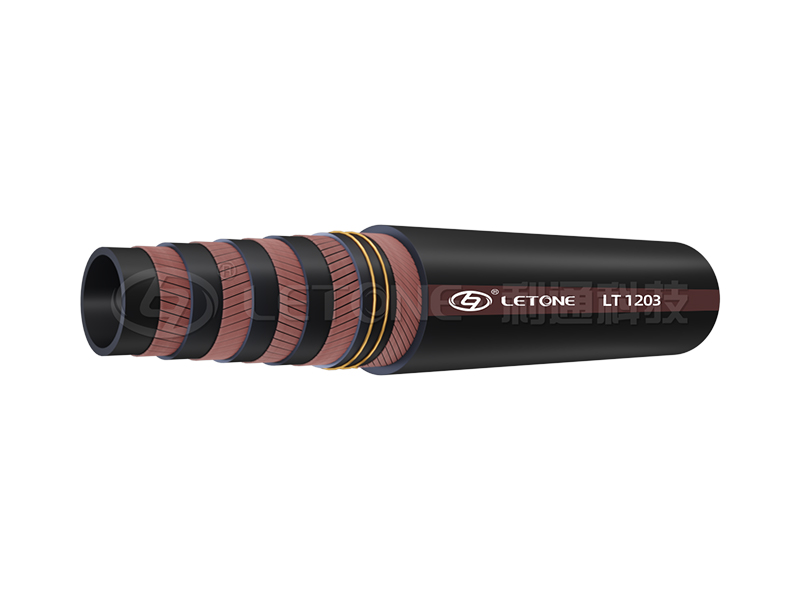

LT1203
SAE J1527 Marine Fuel Hose
Hose Construction & Applications
- Application: Suitable for the transfer of fuel products such as gasoline,ethanol, 100% methanol,diesel,etc.
- Inner Tube: Black NBR synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black NBR and PVC fire retardant mixed rubber
- Temperature Range: -20℃~100℃(-4°F~212°F)
Description
Technical Specifications
*The hose dimension,pressure and color can be customized based on the requirements
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.76 |
70 |
75 |
188 |
400 |
1.75 |
|
3 |
76 |
3.74 |
95 |
75 |
188 |
570 |
2.65 |
|
4 |
102 |
4.84 |
123 |
75 |
188 |
750 |
4.65 |
|
5 |
127 |
6.06 |
154 |
75 |
188 |
1000 |
6.50 |
