LT1202L
En 12115 Upe Low Pressure Multipurpose Hose

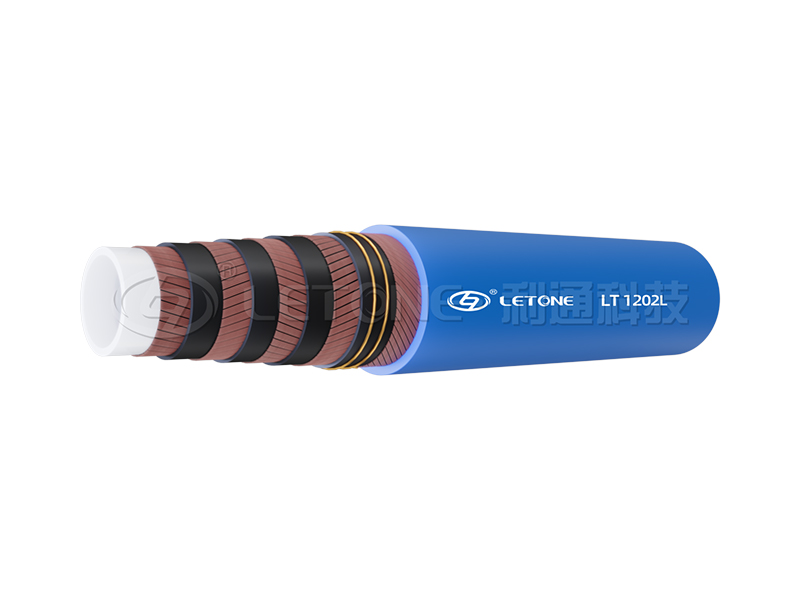

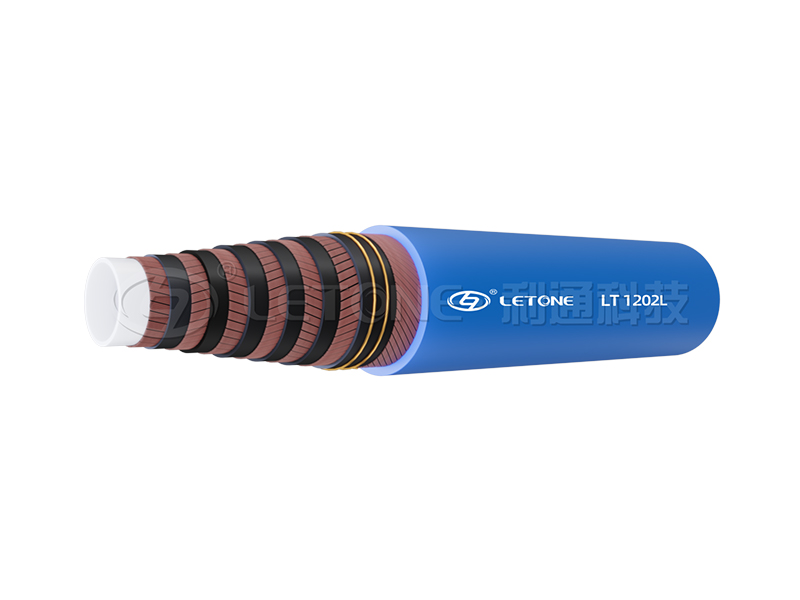

Hose Construction & Applications
- Application: Widely apply to industries like chemical,iron and steel smelting,construction,F&B,and medication etc.It is rarely reacting with any substance(oil,fats,corrosion chemicals etc.)because of its highly saturation materials.Its neutral taste and odor illustrates that it is safe to use in the F&B and medication industries.
- Inner Tube: UPE and EPDM synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black or blue EPDM synthetic rubber (UPE layeris available)
- Temperature Range: -30°C to 82°C (-22°F to 180°F)
Description
Technical Specifications
*The hose dimension,pressure and color can be customized based on the requirements.
|
I.D |
0.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
1/2 |
13 |
0.89 |
22.5 |
290 |
870 |
130 |
0.34 |
|
5/8 |
16 |
1.04 |
26.5 |
290 |
870 |
150 |
0.44 |
|
3/4 |
19 |
1.17 |
29.7 |
290 |
870 |
180 |
0.52 |
|
1 |
25 |
1.39 |
35.2 |
290 |
870 |
205 |
0.52 |
|
1-1/4 |
32 |
1.77 |
45 |
290 |
870 |
250 |
0.95 |
|
1-1/2 |
38 |
2.04 |
52 |
290 |
870 |
300 |
1.2 |
|
2 |
51 |
2.64 |
67 |
300 |
750 |
400 |
1.65 |
|
3 |
76 |
3.82 |
97 |
300 |
750 |
570 |
2.75 |
|
4 |
102 |
4.84 |
123 |
300 |
750 |
750 |
4.65 |
