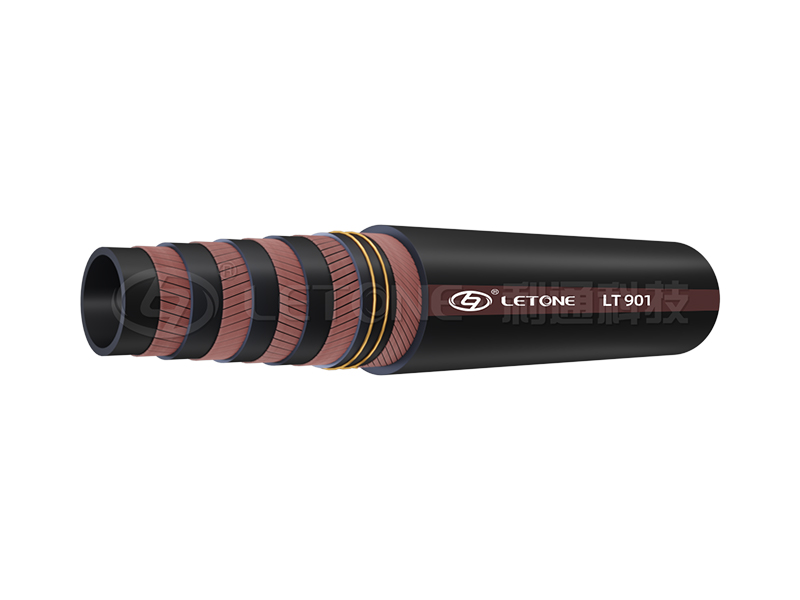

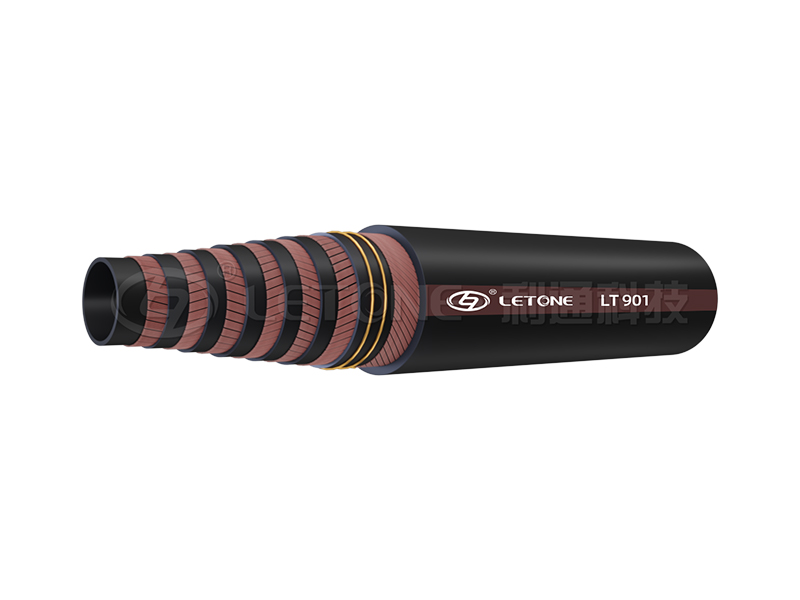

LT901
HG/T 3035 General Purpose Water Suction&Discharge Rubber Hose
Hose Construction & Applications
- Application: Designed for the general use of construction,agriculture,and other industrial applications.
- Inner Tube: Black EPDM or NR&SBR synthetic rubber(UPE layer is available)
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black EPDM or NR&SBR synthetic rubber
- Temperature Range: -30°℃~100℃(-22°F~212°F)
Description
Technical Specifications
*The hose dimension,pressure and color can be customized based on the requirements.
|
I.D. |
O.D. |
Max.W.P. |
Min.B.P |
Min.B.R. |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.64 |
67 |
150 |
375 |
350 |
1.65 |
|
2.5 |
64 |
3.15 |
80 |
150 |
375 |
450 |
2.35 |
|
3 |
76 |
3.66 |
93 |
150 |
375 |
520 |
2.70 |
|
4 |
102 |
4.80 |
122 |
150 |
375 |
700 |
4.60 |
|
5 |
127 |
5.87 |
149 |
150 |
375 |
950 |
6.45 |
|
6 |
152 |
6.81 |
173 |
150 |
375 |
1160 |
7.00 |
|
8 |
203 |
9.17 |
233 |
150 |
375 |
1400 |
15.00 |
|
10 |
254 |
11.30 |
287 |
150 |
375 |
1700 |
20.00 |
|
2 |
51 |
2.76 |
70 |
300 |
750 |
370 |
2.05 |
|
2.5 |
64 |
3.27 |
83 |
300 |
750 |
470 |
2.75 |
|
3 |
76 |
3.78 |
96 |
300 |
750 |
540 |
3.10 |
|
4 |
102 |
4.92 |
125 |
300 |
750 |
720 |
5.00 |
|
5 |
127 |
6.10 |
155 |
300 |
750 |
970 |
7.25 |
|
6 |
152 |
7.05 |
179 |
300 |
750 |
1180 |
7.90 |
|
8 |
203 |
9.41 |
239 |
300 |
750 |
1450 |
15.90 |
|
10 |
254 |
11.54 |
293 |
300 |
750 |
1750 |
20.90 |
