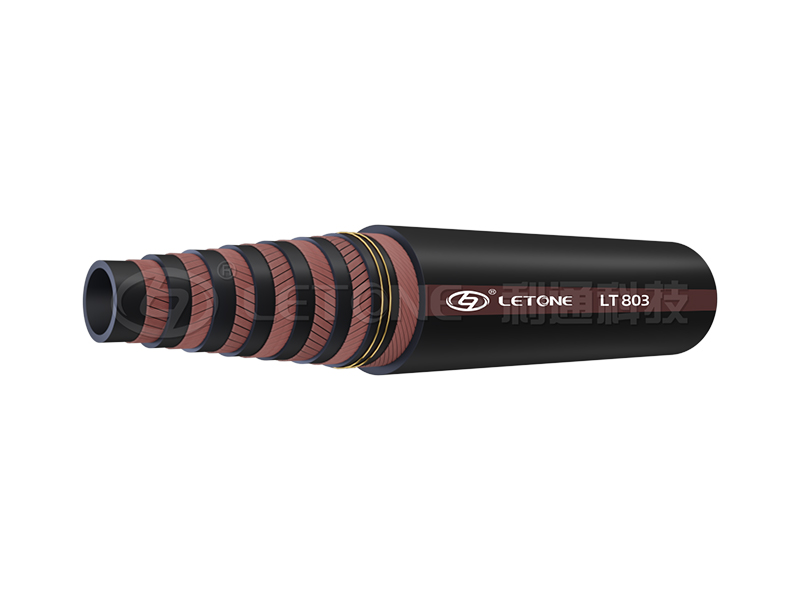

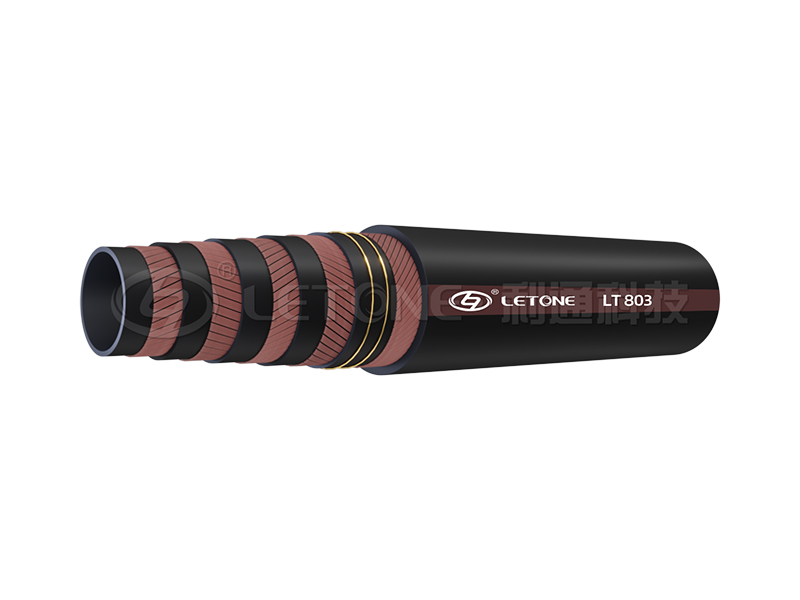

LT803
GB/T 1186 Fiber Spiral Compressed Air Hose
Hose Construction & Applications
- Application: Designed for compressed air transfer in construction and mining industries,suitable for extremely environment because of its abrasion resistant characteristic
- Inner Tube: Black NR&SBR synthetic rubber
- Reinforcement: Multi-spiral high tensile synthetic fibers and helix spiral-wire
- Outer Layer: Black NR&SBR or CR synthetic rubber
- Temperature Range: -30℃~82℃(-22°F~180°F)
Description
Technical Specifications
*The hose dimension,pressure and color can be customized based on the requirements.
|
I.D |
O.D |
W.P |
Min.B.P |
Min.B.R |
W.T |
||
|
in |
mm |
in |
mm |
psi |
psi |
mm |
kg/m |
|
2 |
51 |
2.52 |
64 |
150 |
375 |
400 |
1.55 |
|
2.5 |
64 |
3.03 |
77 |
150 |
375 |
500 |
2.25 |
|
3 |
76 |
3.58 |
91 |
150 |
375 |
570 |
2.60 |
|
4 |
102 |
4.80 |
122 |
150 |
375 |
750 |
4.5 |
|
2 |
51 |
2.64 |
67 |
230 |
575 |
400 |
1.65 |
|
2.5 |
64 |
3.15 |
80 |
230 |
575 |
500 |
2.35 |
|
3 |
76 |
3.70 |
94 |
230 |
575 |
570 |
2.70 |
|
4 |
102 |
4.92 |
125 |
230 |
575 |
750 |
4.60 |
|
2 |
51 |
2.75 |
70 |
360 |
900 |
400 |
1.75 |
|
2.5 |
64 |
3.26 |
83 |
360 |
900 |
500 |
2.45 |
|
3 |
76 |
3.82 |
97 |
360 |
900 |
570 |
2.80 |
|
4 |
102 |
5.03 |
128 |
360 |
900 |
750 |
4.70 |
